Fischer & Cie AG
Connexion

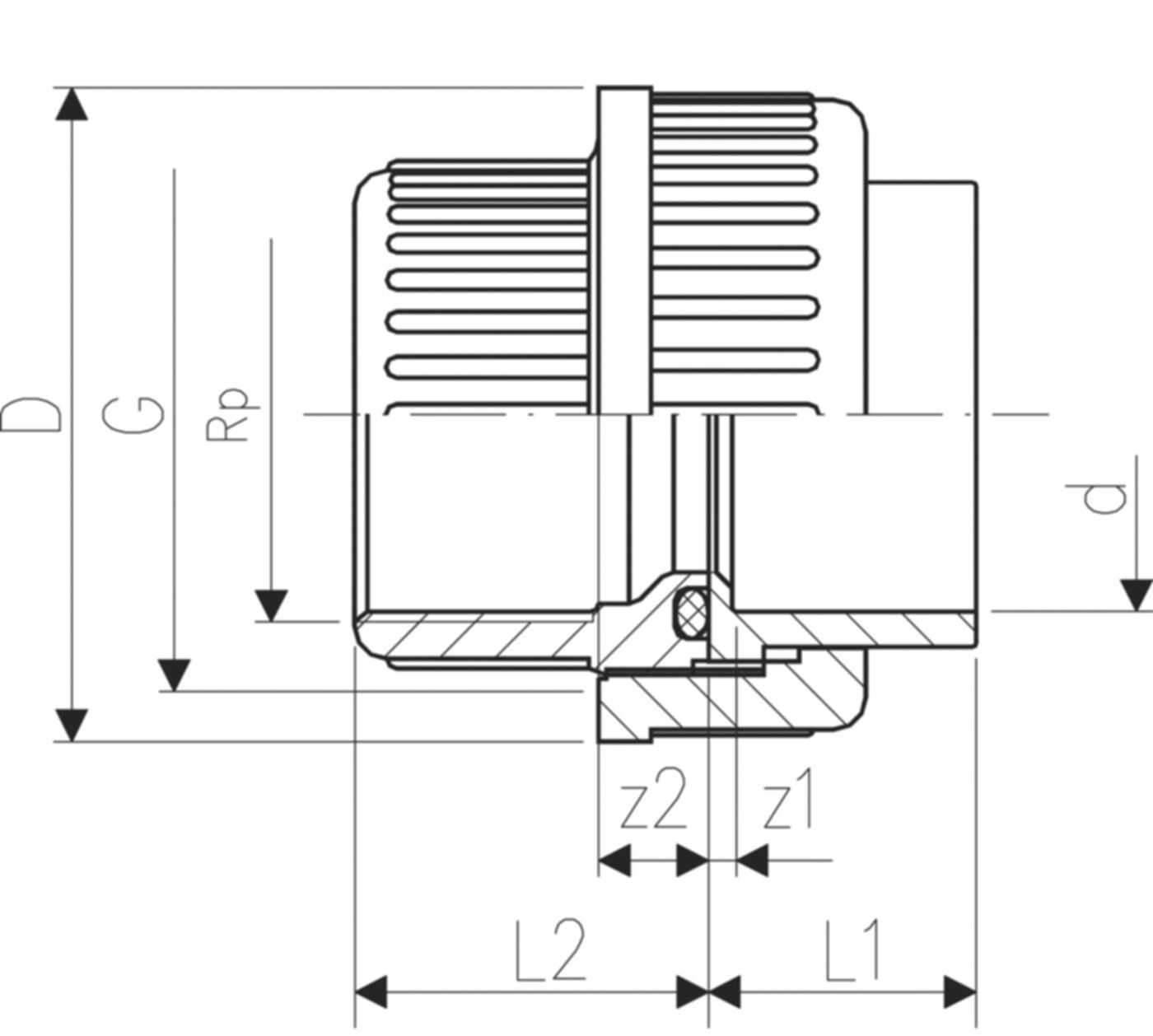

Übergangsverschraubung PVC-U metrisch
Einlegteil Klebemuffe, Einschraubteil IG

Toutes les variantes
N° d'article7215102
Klebefitting PVC-U
7 de 7
Ø d [mm]
IG (Rp) [Zoll]
D [mm]
L1 [mm]
L2 [mm]
G [Zoll]
Trouvé: 7
s [mm]: ---
IG (G) [Zoll]: ---
PN [bar]: 10
L [mm]: ---
Ø d [mm]: 16
z [mm]: ---
IG (Rp) [Zoll]: 3/8
NPK-Nr.: ---
D [mm]: 35
Ø d1 [mm]: ---
AG (R) [Zoll]: ---
L1 [mm]: 17
L2 [mm]: 24
G [Zoll]: 3/4
Verschr PVC-U/EPDM PN10 d16-3/8" - Metrisch

N° d'article 721510205
...

s [mm]: ---
IG (G) [Zoll]: ---
PN [bar]: 10
L [mm]: ---
Ø d [mm]: 20
z [mm]: ---
IG (Rp) [Zoll]: 1/2
NPK-Nr.: ---
D [mm]: 43
Ø d1 [mm]: ---
AG (R) [Zoll]: ---
L1 [mm]: 19
L2 [mm]: 26
G [Zoll]: 1
Verschr PVC-U/EPDM PN10 d20-1/2" - Metrisch

N° d'article 721510206
...

s [mm]: ---
IG (G) [Zoll]: ---
PN [bar]: 10
L [mm]: ---
Ø d [mm]: 25
z [mm]: ---
IG (Rp) [Zoll]: 3/4
NPK-Nr.: ---
D [mm]: 51
Ø d1 [mm]: ---
AG (R) [Zoll]: ---
L1 [mm]: 22
L2 [mm]: 29
G [Zoll]: 1 1/4
Verschr PVC-U/EPDM PN10 d25-3/4" - Metrisch

N° d'article 721510207
...

s [mm]: ---
IG (G) [Zoll]: ---
PN [bar]: 10
L [mm]: ---
Ø d [mm]: 32
z [mm]: ---
IG (Rp) [Zoll]: 1
NPK-Nr.: ---
D [mm]: 58
Ø d1 [mm]: ---
AG (R) [Zoll]: ---
L1 [mm]: 25
L2 [mm]: 33
G [Zoll]: 1 1/2
Verschr PVC-U/EPDM PN10 d32-1" - Metrisch

N° d'article 721510208
...

s [mm]: ---
IG (G) [Zoll]: ---
PN [bar]: 10
L [mm]: ---
Ø d [mm]: 40
z [mm]: ---
IG (Rp) [Zoll]: 1 1/4
NPK-Nr.: ---
D [mm]: 72
Ø d1 [mm]: ---
AG (R) [Zoll]: ---
L1 [mm]: 29
L2 [mm]: 39
G [Zoll]: 2
Verschr PVC-U/EPDM PN10 d40-11/4 - Metrisch

N° d'article 721510209
...

s [mm]: ---
IG (G) [Zoll]: ---
PN [bar]: 10
L [mm]: ---
Ø d [mm]: 50
z [mm]: ---
IG (Rp) [Zoll]: 1 1/2
NPK-Nr.: ---
D [mm]: 83
Ø d1 [mm]: ---
AG (R) [Zoll]: ---
L1 [mm]: 34
L2 [mm]: 46
G [Zoll]: 2 1/4
Verschr PVC-U/EPDM PN10 d50-11/2 - Metrisch

N° d'article 721510210
...

s [mm]: ---
IG (G) [Zoll]: ---
PN [bar]: 10
L [mm]: ---
Ø d [mm]: 63
z [mm]: ---
IG (Rp) [Zoll]: 2
NPK-Nr.: ---
D [mm]: 100
Ø d1 [mm]: ---
AG (R) [Zoll]: ---
L1 [mm]: 41
L2 [mm]: 58
G [Zoll]: 2 3/4
Verschr PVC-U/EPDM PN10 d63-2" - Metrisch

N° d'article 721510211
...


Description

- Einlegteil: Klebemuffe metrisch
- Einschraubteil: Zylindrisches Rohr-Innengewinde Rp
- Dichtung: O-Ring Nr. 48 41 00
- Anschluss nur für Kunststoffgewinde
- Keine PVC-U schädigenden Gewindedichtpasten verwenden
