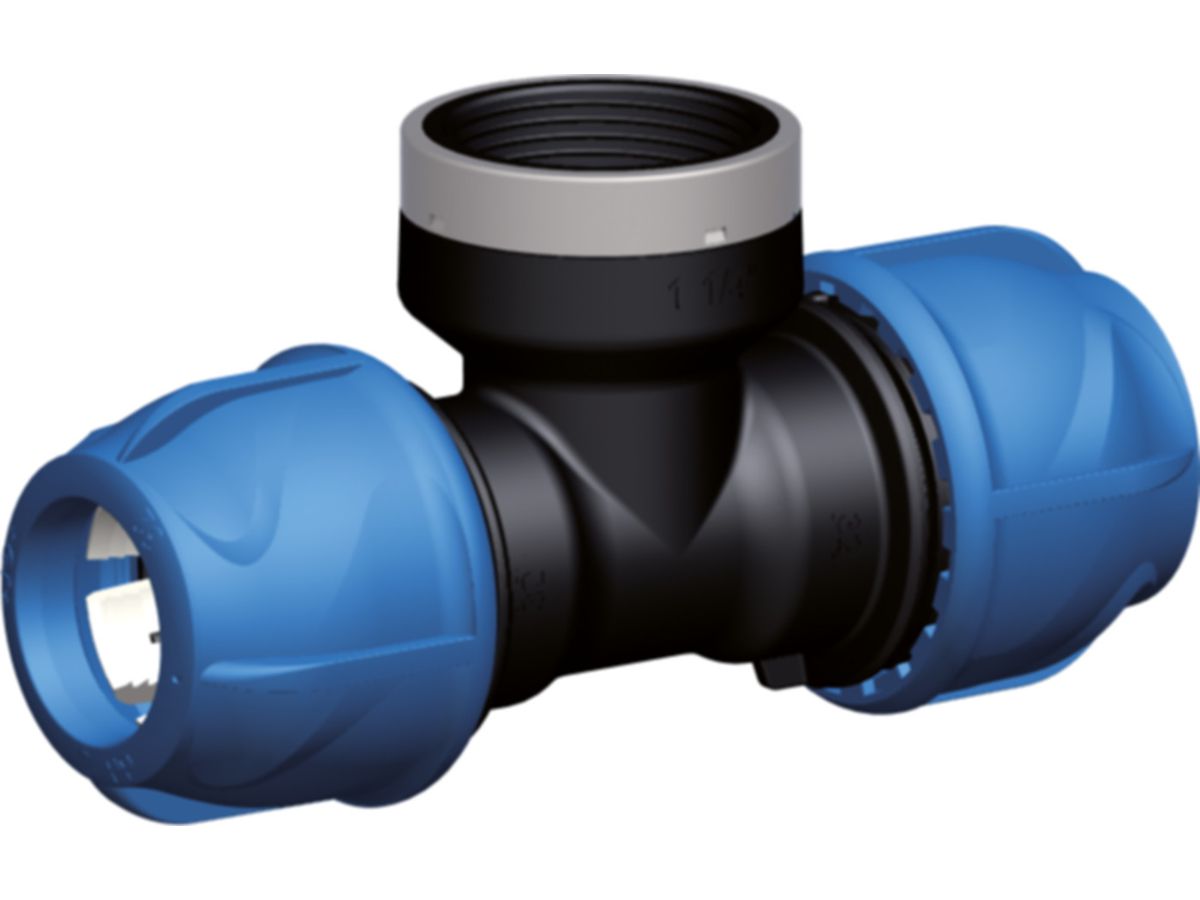

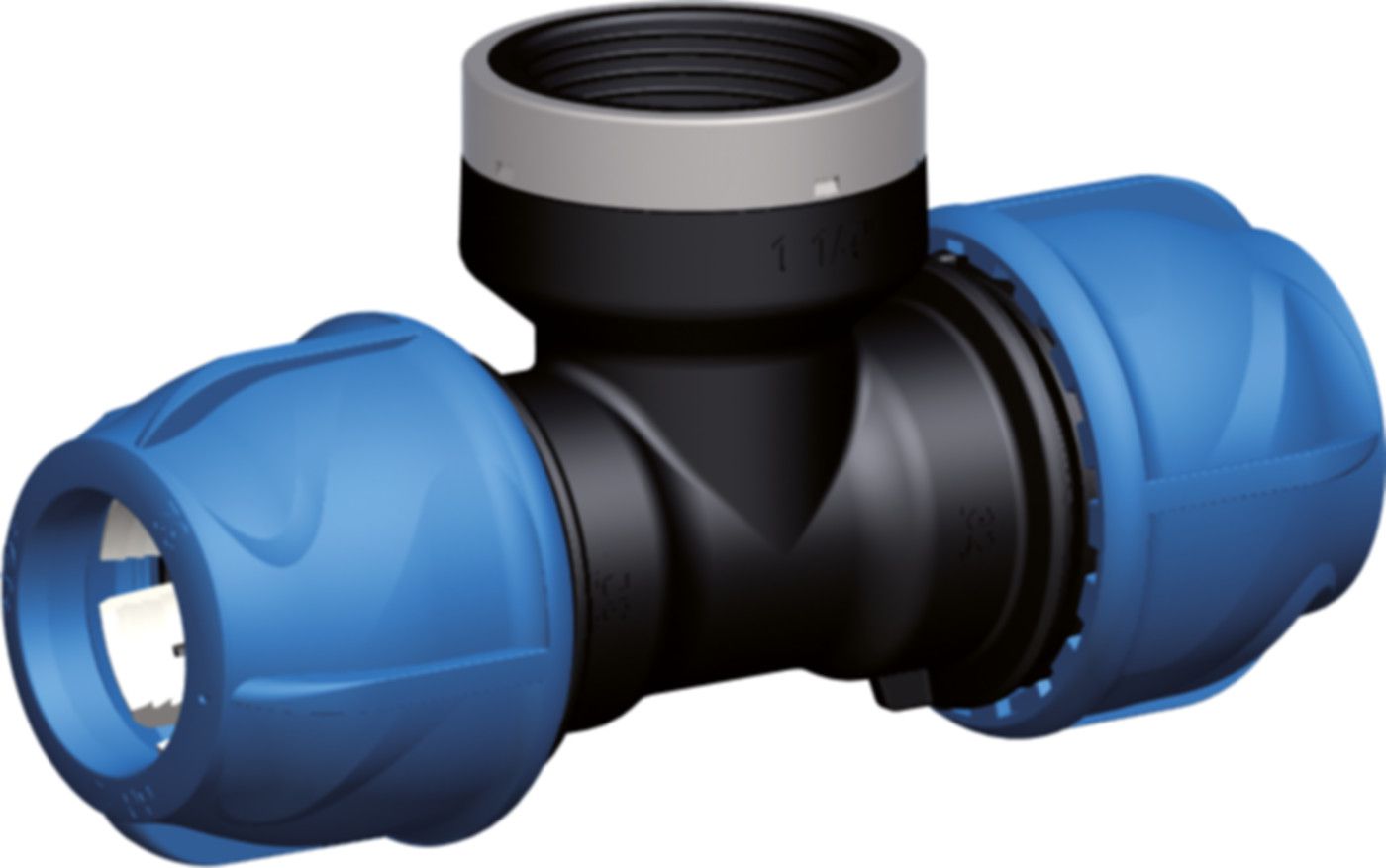

Name: Übergangs-T-90°, IG - iJOINT
Brand: +GF+ iJOINT
SKU: IJUT90IG
Price: 18.97 CHF

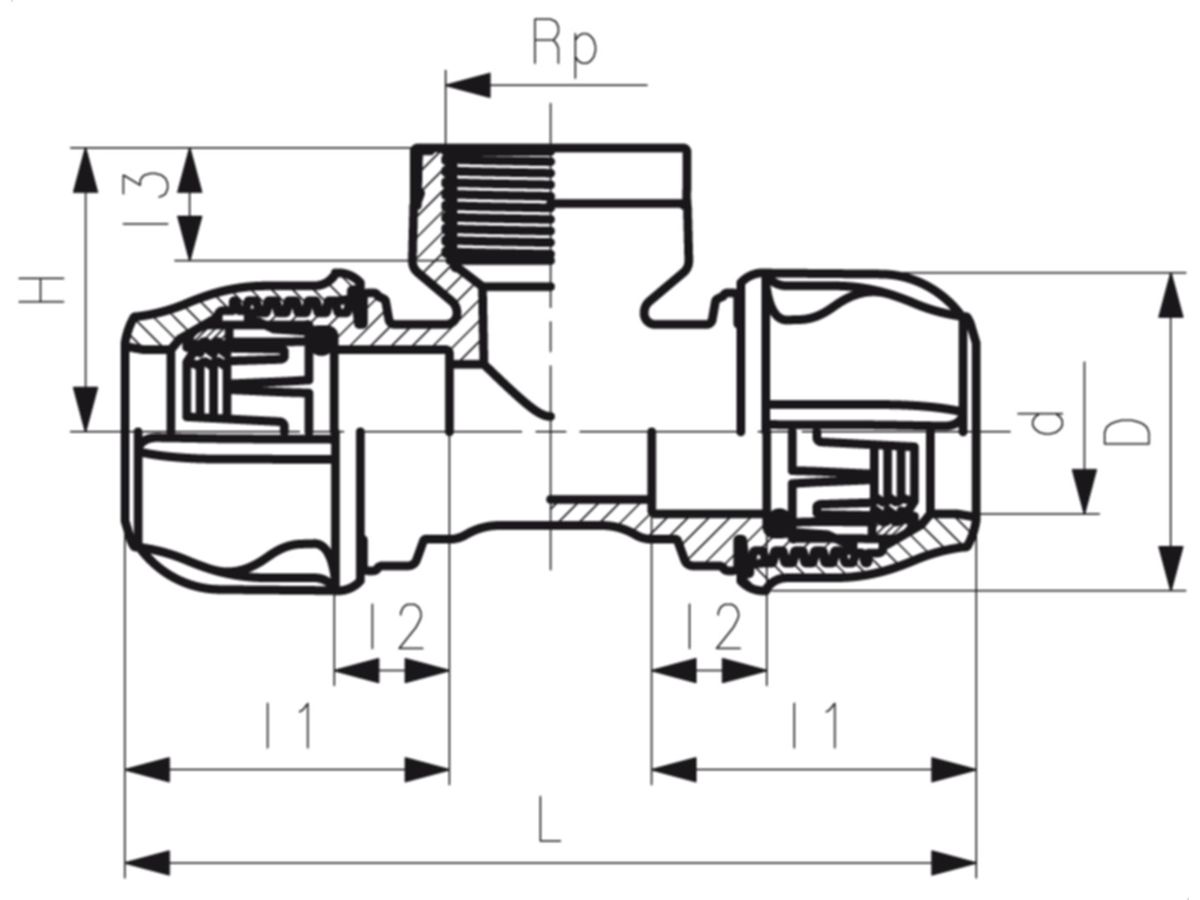

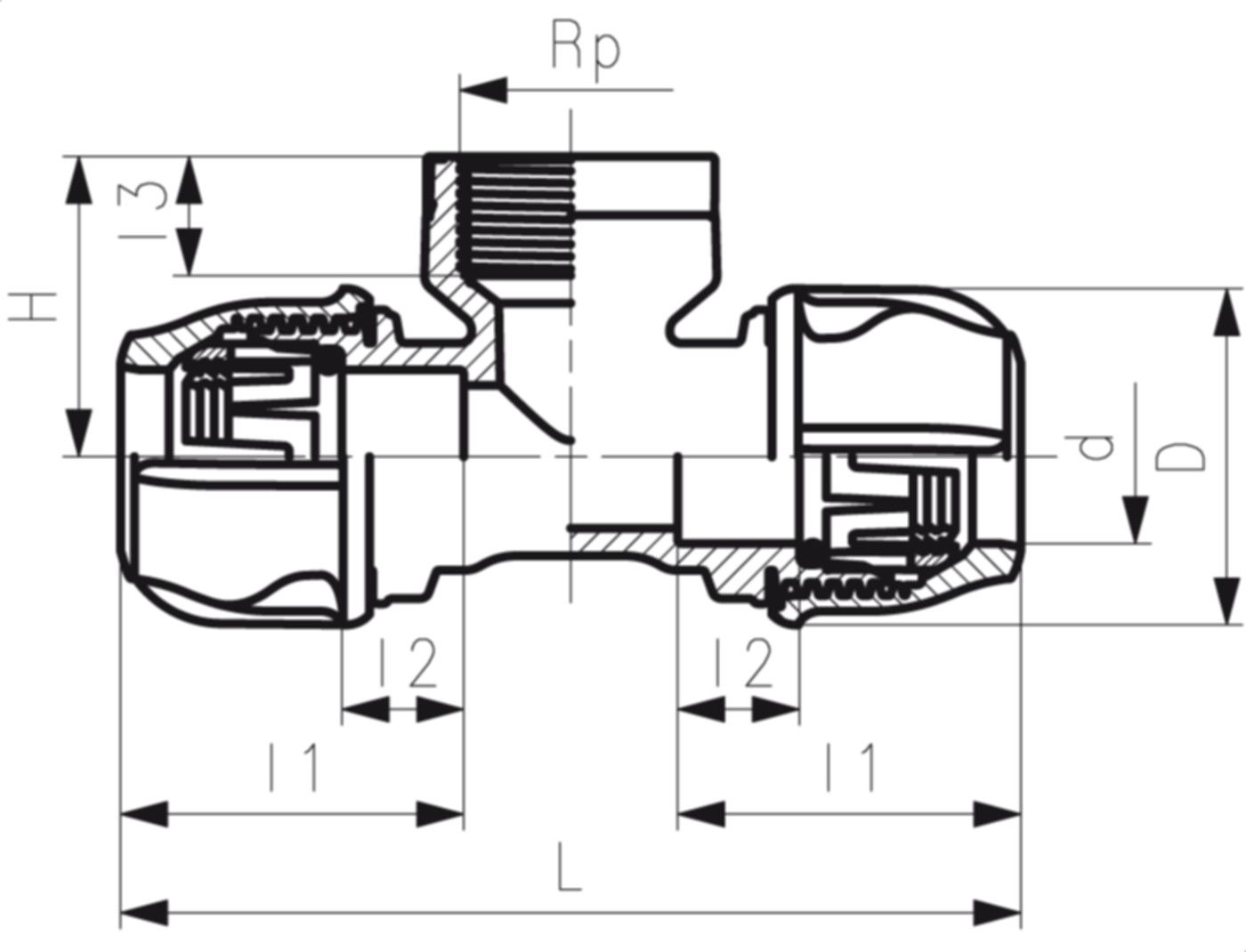

l2 [mm]: 19

PN [bar]: 16

d [mm]: 20

D [mm]: 45

L [mm]: 134

Winkel [°]: 90

l1 [mm]: 54

NPK-Nr.: --

H [mm]: 40

l3 [mm]: 15

IG (Rp) [Zoll]: 1/2

Ø d [mm]: 20

IG [Zoll]: 1/2

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d20-1/2""-20"

N° d'article

158400177

l2 [mm]: 19

PN [bar]: 16

d [mm]: 20

D [mm]: 45

L [mm]: 134

Winkel [°]: 90

l1 [mm]: 54

NPK-Nr.: 432.152

H [mm]: 41

l3 [mm]: 16

IG (Rp) [Zoll]: 3/4

Ø d [mm]: 20

IG [Zoll]: 3/4

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d20-3/4""-20"

N° d'article

158400178

l2 [mm]: 21

PN [bar]: 16

d [mm]: 25

D [mm]: 53

L [mm]: 150

Winkel [°]: 90

l1 [mm]: 59

NPK-Nr.: --

H [mm]: 40

l3 [mm]: 15

IG (Rp) [Zoll]: 1/2

Ø d [mm]: 25

IG [Zoll]: 1/2

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d25-1/2""-25"

N° d'article

158400179

l2 [mm]: 21

PN [bar]: 16

d [mm]: 25

D [mm]: 53

L [mm]: 150

Winkel [°]: 90

l1 [mm]: 59

NPK-Nr.: --

H [mm]: 44

l3 [mm]: 16

IG (Rp) [Zoll]: 3/4

Ø d [mm]: 25

IG [Zoll]: 3/4

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d25-3/4""-25"

N° d'article

158400180

l2 [mm]: 21

PN [bar]: 16

d [mm]: 25

D [mm]: 53

L [mm]: 150

Winkel [°]: 90

l1 [mm]: 59

NPK-Nr.: 432.153

H [mm]: 49

l3 [mm]: 20

IG (Rp) [Zoll]: 1

Ø d [mm]: 25

IG [Zoll]: 1

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d25-1""-25"

N° d'article

158400181

l2 [mm]: 23

PN [bar]: 16

d [mm]: 32

D [mm]: 64

L [mm]: 173

Winkel [°]: 90

l1 [mm]: 66

NPK-Nr.: --

H [mm]: 42

l3 [mm]: 15

IG (Rp) [Zoll]: 1/2

Ø d [mm]: 32

IG [Zoll]: 1/2

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d32-1/2""-32"

N° d'article

158400182

l2 [mm]: 23

PN [bar]: 16

d [mm]: 32

D [mm]: 64

L [mm]: 173

Winkel [°]: 90

l1 [mm]: 66

NPK-Nr.: --

H [mm]: 46

l3 [mm]: 16

IG (Rp) [Zoll]: 3/4

Ø d [mm]: 32

IG [Zoll]: 3/4

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d32-3/4""-32"

N° d'article

158400183

l2 [mm]: 23

PN [bar]: 16

d [mm]: 32

D [mm]: 64

L [mm]: 173

Winkel [°]: 90

l1 [mm]: 66

NPK-Nr.: 442.511

H [mm]: 54

l3 [mm]: 20

IG (Rp) [Zoll]: 1

Ø d [mm]: 32

IG [Zoll]: 1

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d32-1""-32"

N° d'article

158400184

l2 [mm]: 23

PN [bar]: 16

d [mm]: 32

D [mm]: 64

L [mm]: 173

Winkel [°]: 90

l1 [mm]: 66

NPK-Nr.: 442.521

H [mm]: 57

l3 [mm]: 22

IG (Rp) [Zoll]: 1 1/4

Ø d [mm]: 32

IG [Zoll]: 1 1/4

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d32-11/4""-32"

N° d'article

158400185

l2 [mm]: 26

PN [bar]: 16

d [mm]: 40

D [mm]: 75

L [mm]: 203

Winkel [°]: 90

l1 [mm]: 76

NPK-Nr.: --

H [mm]: 49

l3 [mm]: 16

IG (Rp) [Zoll]: 3/4

Ø d [mm]: 40

IG [Zoll]: 3/4

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d40-3/4""-40"

N° d'article

158400186

l2 [mm]: 26

PN [bar]: 16

d [mm]: 40

D [mm]: 75

L [mm]: 203

Winkel [°]: 90

l1 [mm]: 76

NPK-Nr.: 442.512

H [mm]: 57

l3 [mm]: 20

IG (Rp) [Zoll]: 1

Ø d [mm]: 40

IG [Zoll]: 1

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d40-1""-40"

N° d'article

158400187

l2 [mm]: 26

PN [bar]: 16

d [mm]: 40

D [mm]: 75

L [mm]: 203

Winkel [°]: 90

l1 [mm]: 76

NPK-Nr.: 442.522

H [mm]: 62

l3 [mm]: 22

IG (Rp) [Zoll]: 1 1/4

Ø d [mm]: 40

IG [Zoll]: 1 1/4

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d40-11/4""-40"

N° d'article

158400188

l2 [mm]: 26

PN [bar]: 16

d [mm]: 40

D [mm]: 75

L [mm]: 206

Winkel [°]: 90

l1 [mm]: 76

NPK-Nr.: 442.533

H [mm]: 63

l3 [mm]: 22

IG (Rp) [Zoll]: 1 1/2

Ø d [mm]: 40

IG [Zoll]: 1 1/2

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d40-11/2""-40"

N° d'article

158400189

l2 [mm]: 30

PN [bar]: 16

d [mm]: 50

D [mm]: 97

L [mm]: 239

Winkel [°]: 90

l1 [mm]: 88

NPK-Nr.: 442.513

H [mm]: 61

l3 [mm]: 20

IG (Rp) [Zoll]: 1

Ø d [mm]: 50

IG [Zoll]: 1

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d50-1""-50"

N° d'article

158400190

l2 [mm]: 30

PN [bar]: 16

d [mm]: 50

D [mm]: 97

L [mm]: 239

Winkel [°]: 90

l1 [mm]: 88

NPK-Nr.: 442.523

H [mm]: 66

l3 [mm]: 22

IG (Rp) [Zoll]: 1 1/4

Ø d [mm]: 50

IG [Zoll]: 1 1/4

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d50-11/4""-50"

N° d'article

158400191

l2 [mm]: 30

PN [bar]: 16

d [mm]: 50

D [mm]: 97

L [mm]: 171

Winkel [°]: 90

l1 [mm]: 88

NPK-Nr.: 442.533

H [mm]: 70

l3 [mm]: 22

IG (Rp) [Zoll]: 1 1/2

Ø d [mm]: 50

IG [Zoll]: 1 1/2

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d50-11/2""-50"

N° d'article

158400192

l2 [mm]: 30

PN [bar]: 16

d [mm]: 50

D [mm]: 97

L [mm]: 239

Winkel [°]: 90

l1 [mm]: 88

NPK-Nr.: 442.543

H [mm]: 75

l3 [mm]: 26

IG (Rp) [Zoll]: 2

Ø d [mm]: 50

IG [Zoll]: 2

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d50-2""-50"

N° d'article

158400193

l2 [mm]: 35

PN [bar]: 16

d [mm]: 63

D [mm]: 114

L [mm]: 288

Winkel [°]: 90

l1 [mm]: 104

NPK-Nr.: 442.524

H [mm]: 73

l3 [mm]: 22

IG (Rp) [Zoll]: 1 1/4

Ø d [mm]: 63

IG [Zoll]: 1 1/4

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d63-11/4""-63"

N° d'article

158400194

l2 [mm]: 35

PN [bar]: 16

d [mm]: 63

D [mm]: 114

L [mm]: 288

Winkel [°]: 90

l1 [mm]: 104

NPK-Nr.: 442.534

H [mm]: 76

l3 [mm]: 22

IG (Rp) [Zoll]: 1 1/2

Ø d [mm]: 63

IG [Zoll]: 1 1/2

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d63-11/2""-63"

N° d'article

158400195

l2 [mm]: 35

PN [bar]: 16

d [mm]: 63

D [mm]: 114

L [mm]: 207

Winkel [°]: 90

l1 [mm]: 104

NPK-Nr.: 442.544

H [mm]: 83

l3 [mm]: 26

IG (Rp) [Zoll]: 2

Ø d [mm]: 63

IG [Zoll]: 2

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d63-2""-63"

N° d'article

158400196

l2 [mm]: 41

PN [bar]: 16

d [mm]: 75

D [mm]: 135

L [mm]: 360

Winkel [°]: 90

l1 [mm]: 133

NPK-Nr.: 443.346

H [mm]: 101

l3 [mm]: 31

IG (Rp) [Zoll]: 2 1/2

Ø d [mm]: 75

IG [Zoll]: 2 1/2

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d75-21/2""-75"

N° d'article

158400197

l2 [mm]: 44

PN [bar]: 16

d [mm]: 90

D [mm]: 161

L [mm]: 413

Winkel [°]: 90

l1 [mm]: 150

NPK-Nr.: 443.337

H [mm]: 116

l3 [mm]: 34

IG (Rp) [Zoll]: 3

Ø d [mm]: 90

IG [Zoll]: 3

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN10 d90-3""-90"

N° d'article

158400198

l2 [mm]: 53

PN [bar]: 16

d [mm]: 110

D [mm]: 185

L [mm]: 484

Winkel [°]: 90

l1 [mm]: 175

NPK-Nr.: 443.338

H [mm]: 135

l3 [mm]: 40

IG (Rp) [Zoll]: 4

Ø d [mm]: 110

IG [Zoll]: 4

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN10 d110-4""-110"

N° d'article

158400199
