Fischer & Cie AG
Connexion

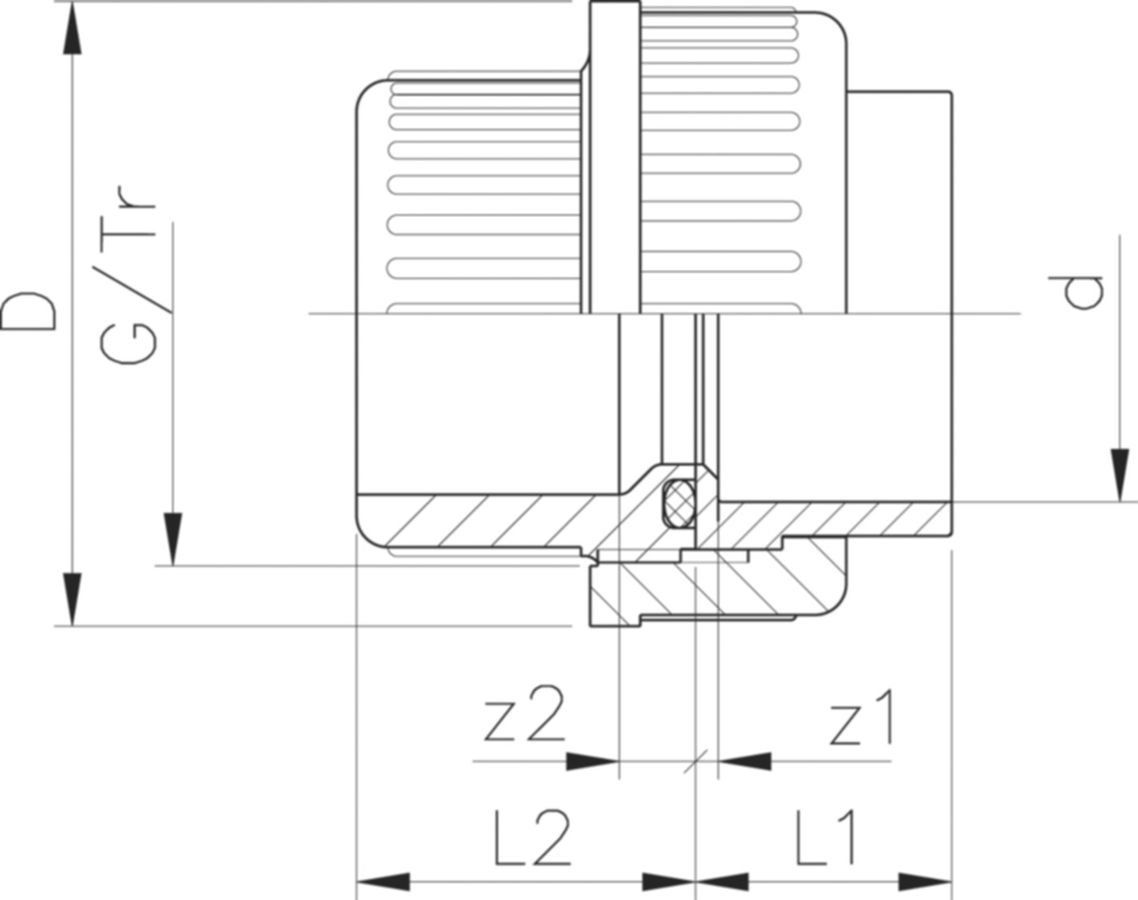

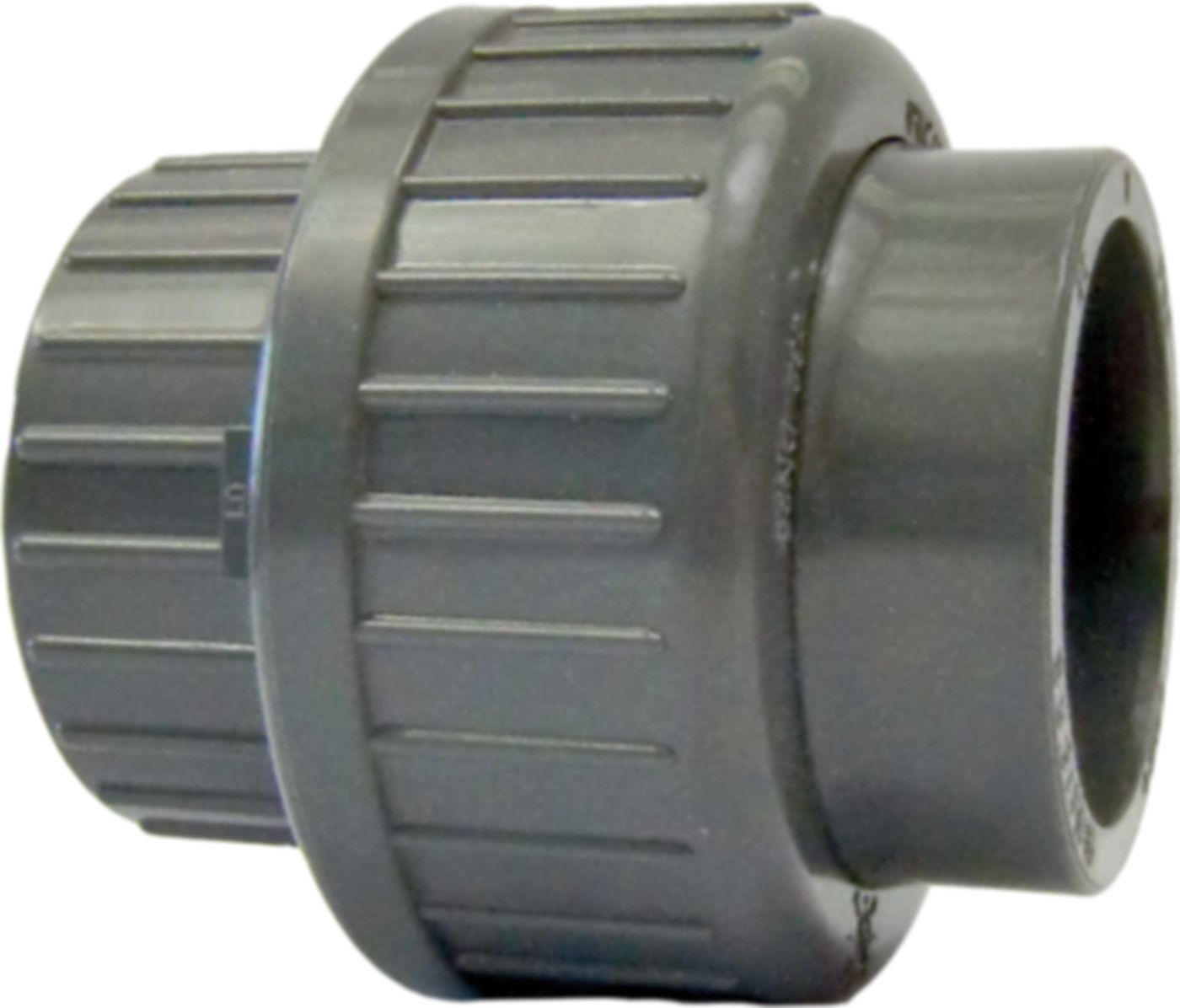

Klebverschraubungen PVC-U metrisch
Einlegteil Klebemuffe, Einschr. metrisch

Toutes les variantes
N° d'article7215101
Klebefitting PVC-U
8 de 8
D [mm]
Ø d [mm]
L2 [mm]
NPK-Nr.
G [Zoll]
L1 [mm]
Trouvé: 8
PN [bar]: 16
D [mm]: 31
Ø d [mm]: 12
L2 [mm]: 22
NPK-Nr.: --
G [Zoll]: 5/8
L1 [mm]: 15
D1 [mm]: ---
L [mm]: ---
DN: ---
z [mm]: ---
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Klebeverschraubung PN16 d12 DN8 - PVC-U/EPDM

N° d'article 721510104
...

PN [bar]: 16
D [mm]: 35
Ø d [mm]: 16
L2 [mm]: 24
NPK-Nr.: 535.111
G [Zoll]: 3/4
L1 [mm]: 17
D1 [mm]: ---
L [mm]: ---
DN: ---
z [mm]: ---
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Klebeverschraubung PN16 d16 DN10 - PVC-U/EPDM

N° d'article 721510105
...

PN [bar]: 16
D [mm]: 43
Ø d [mm]: 20
L2 [mm]: 26
NPK-Nr.: 535.112
G [Zoll]: 1
L1 [mm]: 19
D1 [mm]: ---
L [mm]: ---
DN: ---
z [mm]: ---
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Klebeverschraubung PN16 d20 DN15 - PVC-U/EPDM

N° d'article 721510106
...

PN [bar]: 16
D [mm]: 51
Ø d [mm]: 25
L2 [mm]: 29
NPK-Nr.: 535.113
G [Zoll]: 1 1/4
L1 [mm]: 22
D1 [mm]: ---
L [mm]: ---
DN: ---
z [mm]: ---
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Klebeverschraubung PN16 d25 DN20 - PVC-U/EPDM

N° d'article 721510107
...

PN [bar]: 16
D [mm]: 58
Ø d [mm]: 32
L2 [mm]: 33
NPK-Nr.: 535.114
G [Zoll]: 1 1/2
L1 [mm]: 25
D1 [mm]: ---
L [mm]: ---
DN: ---
z [mm]: ---
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Klebeverschraubung PN16 d32 DN25 - PVC-U/EPDM

N° d'article 721510108
...

PN [bar]: 16
D [mm]: 72
Ø d [mm]: 40
L2 [mm]: 39
NPK-Nr.: 535.115
G [Zoll]: 2
L1 [mm]: 29
D1 [mm]: ---
L [mm]: ---
DN: ---
z [mm]: ---
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Klebeverschraubung PN16 d40 DN32 - PVC-U/EPDM

N° d'article 721510109
...

PN [bar]: 16
D [mm]: 83
Ø d [mm]: 50
L2 [mm]: 46
NPK-Nr.: 535.116
G [Zoll]: 2 1/4
L1 [mm]: 34
D1 [mm]: ---
L [mm]: ---
DN: ---
z [mm]: ---
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Klebeverschraubung PN16 d50 DN40 - PVC-U/EPDM

N° d'article 721510110
...

PN [bar]: 16
D [mm]: 100
Ø d [mm]: 63
L2 [mm]: 58
NPK-Nr.: 535.117
G [Zoll]: 2 3/4
L1 [mm]: 41
D1 [mm]: ---
L [mm]: ---
DN: ---
z [mm]: ---
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Klebeverschraubung PN16 d63 DN50 - PVC-U/EPDM

N° d'article 721510111
...


Description

- Einlegeteil: Klebemuffe metrisch
- Einschraubteil: Klebemuffe metrisch
- Dichtfläche mit O-Ring Nut
