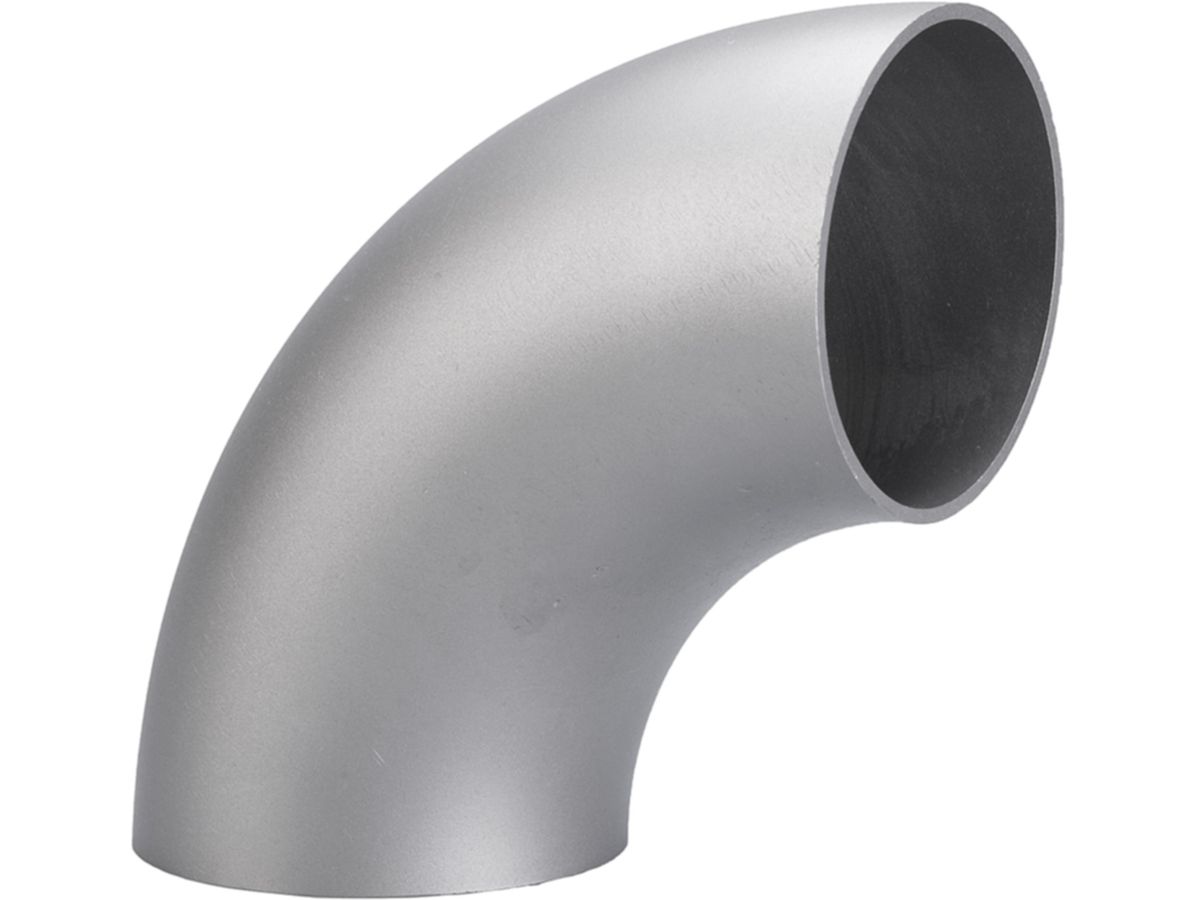

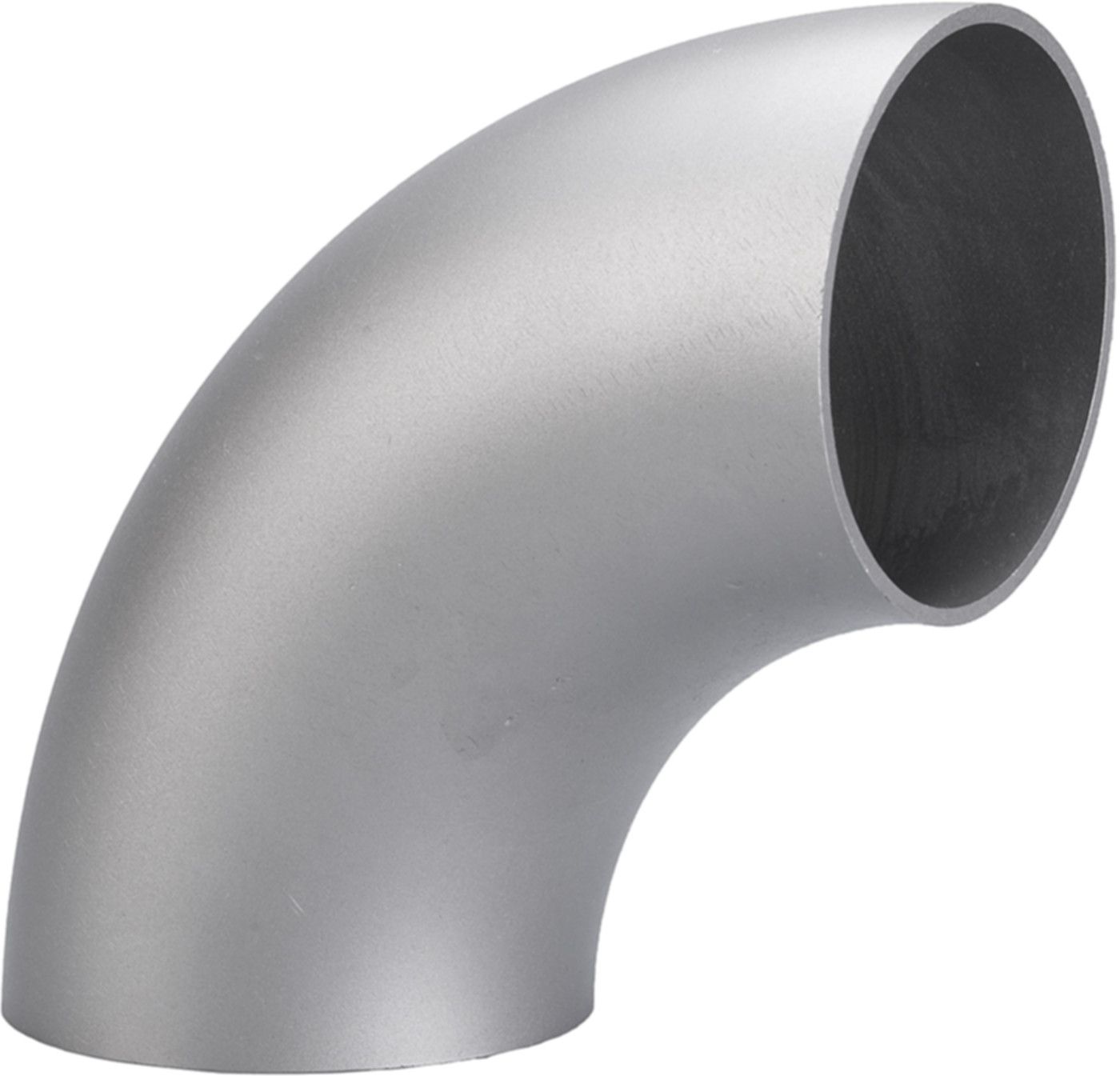

Gasrohrbogen nahtlos S235 3d 90°

Toutes les variantes
N° d'articleRBG3D090
9 de 9
Fanions

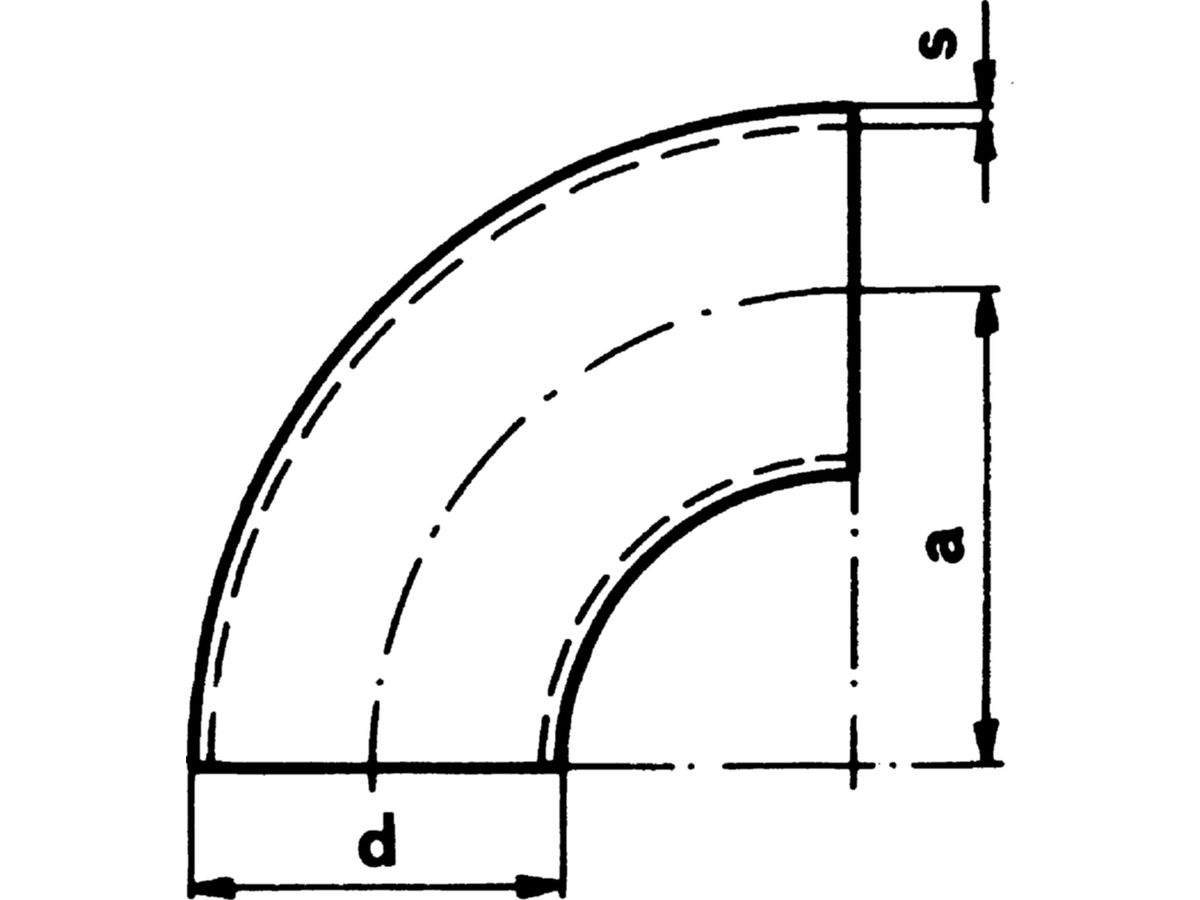

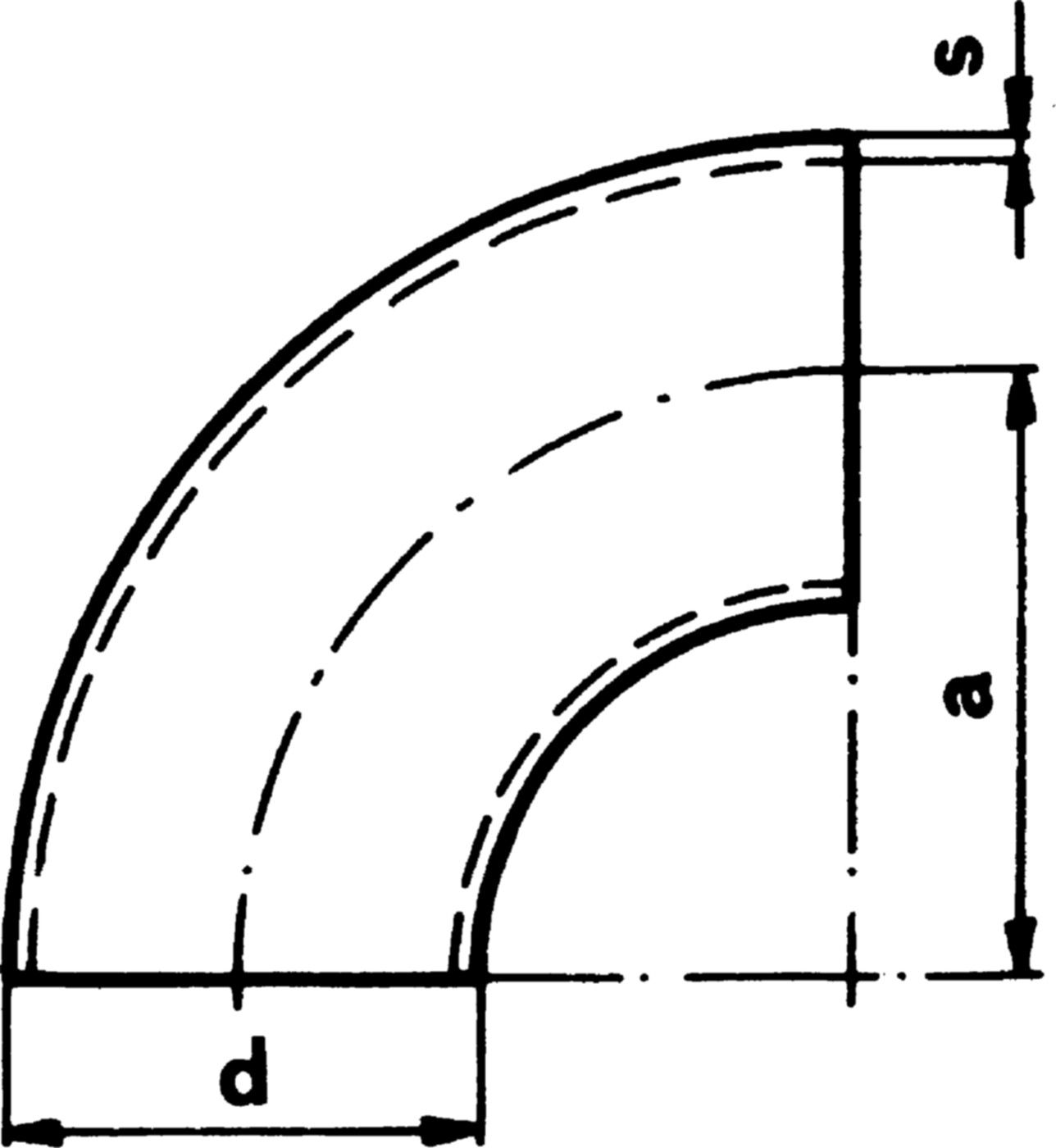

da [mm]
s [mm]
b [mm]
R [mm]
Dim. [Zoll]
Dim. [DN]
Trouvé: 9
da [mm]: 17.2
s [mm]: 2.35
b [mm]: 36
R [mm]: 27.5
Dim. [Zoll]: 3/8
Dim. [DN]: 10
Radius [mm]: ---
Schenkel [mm]: ---
Ø-aussen [mm]: ---
Wandstärke [mm]: ---
2b [mm]: ---
Gasrohrbogen nahtlos S235 3d 90° 3/8"

N° d'article RBG3D090.2
...

da [mm]: 21.3
s [mm]: 2.65
b [mm]: 41
R [mm]: 30.0
Dim. [Zoll]: 1/2
Dim. [DN]: 15
Radius [mm]: ---
Schenkel [mm]: ---
Ø-aussen [mm]: ---
Wandstärke [mm]: ---
2b [mm]: ---
Gasrohrbogen nahtlos S235 3d 90° 1/2"

N° d'article RBG3D090.3
...

da [mm]: 26.9
s [mm]: 2.65
b [mm]: 51
R [mm]: 37.5
Dim. [Zoll]: 3/4
Dim. [DN]: 20
Radius [mm]: ---
Schenkel [mm]: ---
Ø-aussen [mm]: ---
Wandstärke [mm]: ---
2b [mm]: ---
Gasrohrbogen nahtlos S235 3d 90° 3/4"

N° d'article RBG3D090.4
...

da [mm]: 33.7
s [mm]: 3.25
b [mm]: 62
R [mm]: 45.0
Dim. [Zoll]: 1
Dim. [DN]: 25
Radius [mm]: ---
Schenkel [mm]: ---
Ø-aussen [mm]: ---
Wandstärke [mm]: ---
2b [mm]: ---
Gasrohrbogen nahtlos S235 3d 90° 1"

N° d'article RBG3D090.5
...

da [mm]: 42.4
s [mm]: 3.25
b [mm]: 81
R [mm]: 60.0
Dim. [Zoll]: 1 1/4
Dim. [DN]: 32
Radius [mm]: ---
Schenkel [mm]: ---
Ø-aussen [mm]: ---
Wandstärke [mm]: ---
2b [mm]: ---
Gasrohrbogen nahtlos S235 3d 90° 11/4"

N° d'article RBG3D090.6
...

da [mm]: 48.3
s [mm]: 3.25
b [mm]: 90
R [mm]: 65.0
Dim. [Zoll]: 1 1/2
Dim. [DN]: 40
Radius [mm]: ---
Schenkel [mm]: ---
Ø-aussen [mm]: ---
Wandstärke [mm]: ---
2b [mm]: ---
Gasrohrbogen nahtlos S235 3d 90° 11/2"

N° d'article RBG3D090.7
...

da [mm]: 60.3
s [mm]: 3.65
b [mm]: 110
R [mm]: 80.0
Dim. [Zoll]: 2
Dim. [DN]: 50
Radius [mm]: ---
Schenkel [mm]: ---
Ø-aussen [mm]: ---
Wandstärke [mm]: ---
2b [mm]: ---
Gasrohrbogen nahtlos S235 3d 90° 2"

N° d'article RBG3D090.8
...

da [mm]: 76.1
s [mm]: 3.65
b [mm]: 144
R [mm]: 106.0
Dim. [Zoll]: 2 1/2
Dim. [DN]: 65
Radius [mm]: ---
Schenkel [mm]: ---
Ø-aussen [mm]: ---
Wandstärke [mm]: ---
2b [mm]: ---
Gasrohrbogen nahtlos S235 3d 90° 21/2"

N° d'article RBG3D090.9
...

da [mm]: 88.9
s [mm]: 4.05
b [mm]: 162
R [mm]: 117.5
Dim. [Zoll]: 3
Dim. [DN]: 80
Radius [mm]: ---
Schenkel [mm]: ---
Ø-aussen [mm]: ---
Wandstärke [mm]: ---
2b [mm]: ---
Gasrohrbogen nahtlos S235 3d 90° 3"

N° d'article RBG3D090.A
...


Description

- Aus Stahl S235, nach EN 10253-2
