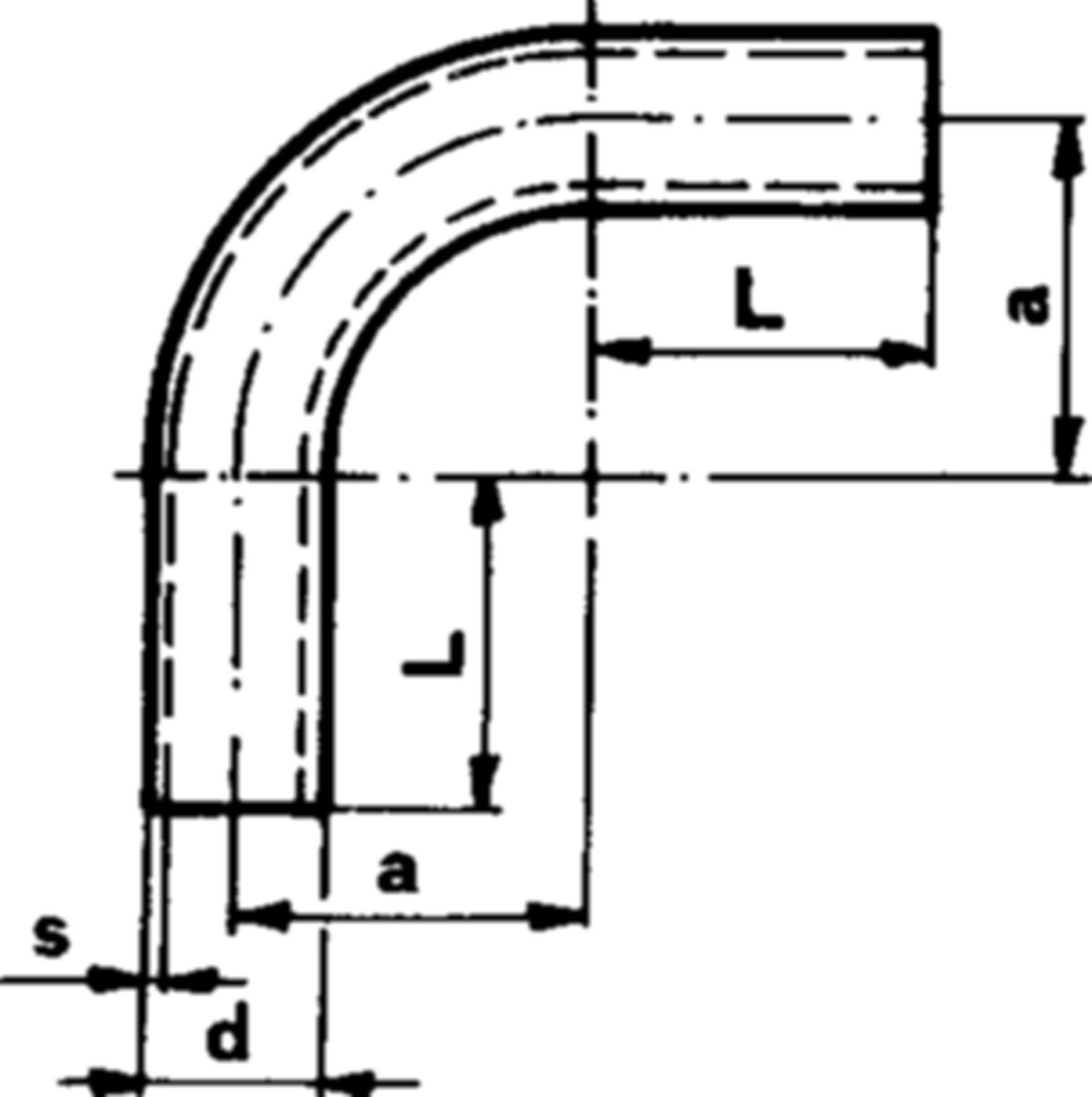

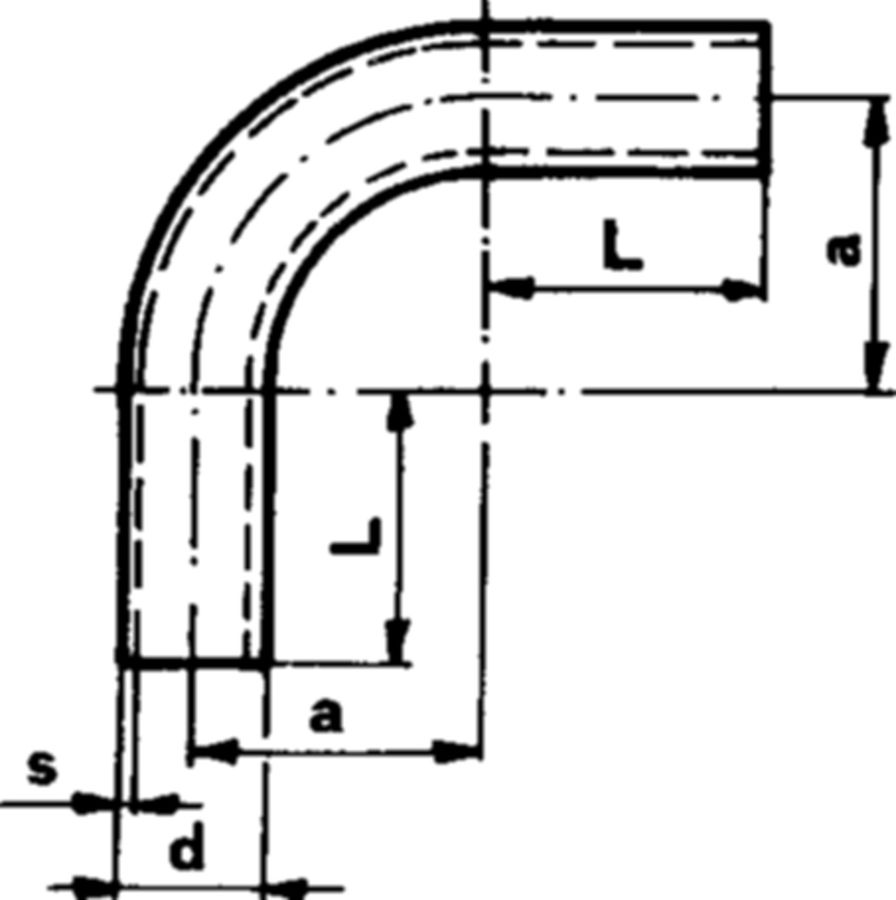

Dampfrohrbogen nahtlos S235 4d 90°

Toutes les variantes
N° d'articleRBD4D090
8 de 8
Dim. [Zoll]
Radius [mm]
Schenkel [mm]
Ø-aussen [mm]
Wandstärke [mm]
Trouvé: 8
da [mm]: ---
s [mm]: ---
b [mm]: ---
R [mm]: ---
Dim. [Zoll]: 1/2
Dim. [DN]: ---
Radius [mm]: 40.0
Schenkel [mm]: 40
Ø-aussen [mm]: 21.3
Wandstärke [mm]: 3.25
2b [mm]: ---
Dampfrohrbogen nahtlos S235 4d 90° 1/2"

N° d'article RBD4D090.3
...

da [mm]: ---
s [mm]: ---
b [mm]: ---
R [mm]: ---
Dim. [Zoll]: 1
Dim. [DN]: ---
Radius [mm]: 60.0
Schenkel [mm]: 50
Ø-aussen [mm]: 33.7
Wandstärke [mm]: 4.05
2b [mm]: ---
Dampfrohrbogen nahtlos S235 4d 90° 1"

N° d'article RBD4D090.5
...

da [mm]: ---
s [mm]: ---
b [mm]: ---
R [mm]: ---
Dim. [Zoll]: 1 1/4
Dim. [DN]: ---
Radius [mm]: 72.5
Schenkel [mm]: 55
Ø-aussen [mm]: 42.4
Wandstärke [mm]: 4.05
2b [mm]: ---
Dampfrohrbogen nahtlos S235 4d 90° 11/4"

N° d'article RBD4D090.6
...

da [mm]: ---
s [mm]: ---
b [mm]: ---
R [mm]: ---
Dim. [Zoll]: 1 1/2
Dim. [DN]: ---
Radius [mm]: 85.0
Schenkel [mm]: 60
Ø-aussen [mm]: 48.3
Wandstärke [mm]: 4.05
2b [mm]: ---
Dampfrohrbogen nahtlos S235 4d 90° 11/2"

N° d'article RBD4D090.7
...

da [mm]: ---
s [mm]: ---
b [mm]: ---
R [mm]: ---
Dim. [Zoll]: 2
Dim. [DN]: ---
Radius [mm]: 107.5
Schenkel [mm]: 65
Ø-aussen [mm]: 60.3
Wandstärke [mm]: 4.50
2b [mm]: ---
Dampfrohrbogen nahtlos S235 4d 90° 2"

N° d'article RBD4D090.8
...

da [mm]: ---
s [mm]: ---
b [mm]: ---
R [mm]: ---
Dim. [Zoll]: 2 1/2
Dim. [DN]: ---
Radius [mm]: 140.0
Schenkel [mm]: 70
Ø-aussen [mm]: 76.1
Wandstärke [mm]: 4.50
2b [mm]: ---
Dampfrohrbogen nahtlos S235 4d 90° 21/2"

N° d'article RBD4D090.9
...

da [mm]: ---
s [mm]: ---
b [mm]: ---
R [mm]: ---
Dim. [Zoll]: 3
Dim. [DN]: ---
Radius [mm]: 165.0
Schenkel [mm]: 80
Ø-aussen [mm]: 88.9
Wandstärke [mm]: 4.85
2b [mm]: ---
Dampfrohrbogen nahtlos S235 4d 90° 3"

N° d'article RBD4D090.A
...

da [mm]: ---
s [mm]: ---
b [mm]: ---
R [mm]: ---
Dim. [Zoll]: 4
Dim. [DN]: ---
Radius [mm]: 220.0
Schenkel [mm]: 100
Ø-aussen [mm]: 114.3
Wandstärke [mm]: 5.40
2b [mm]: ---
Dampfrohrbogen nahtlos S235 4d 90° 4"

N° d'article RBD4D090.B
...


Description

- Nahtlos, 4d 90°
- Aus Stahl S235, nach EN 10253-2
