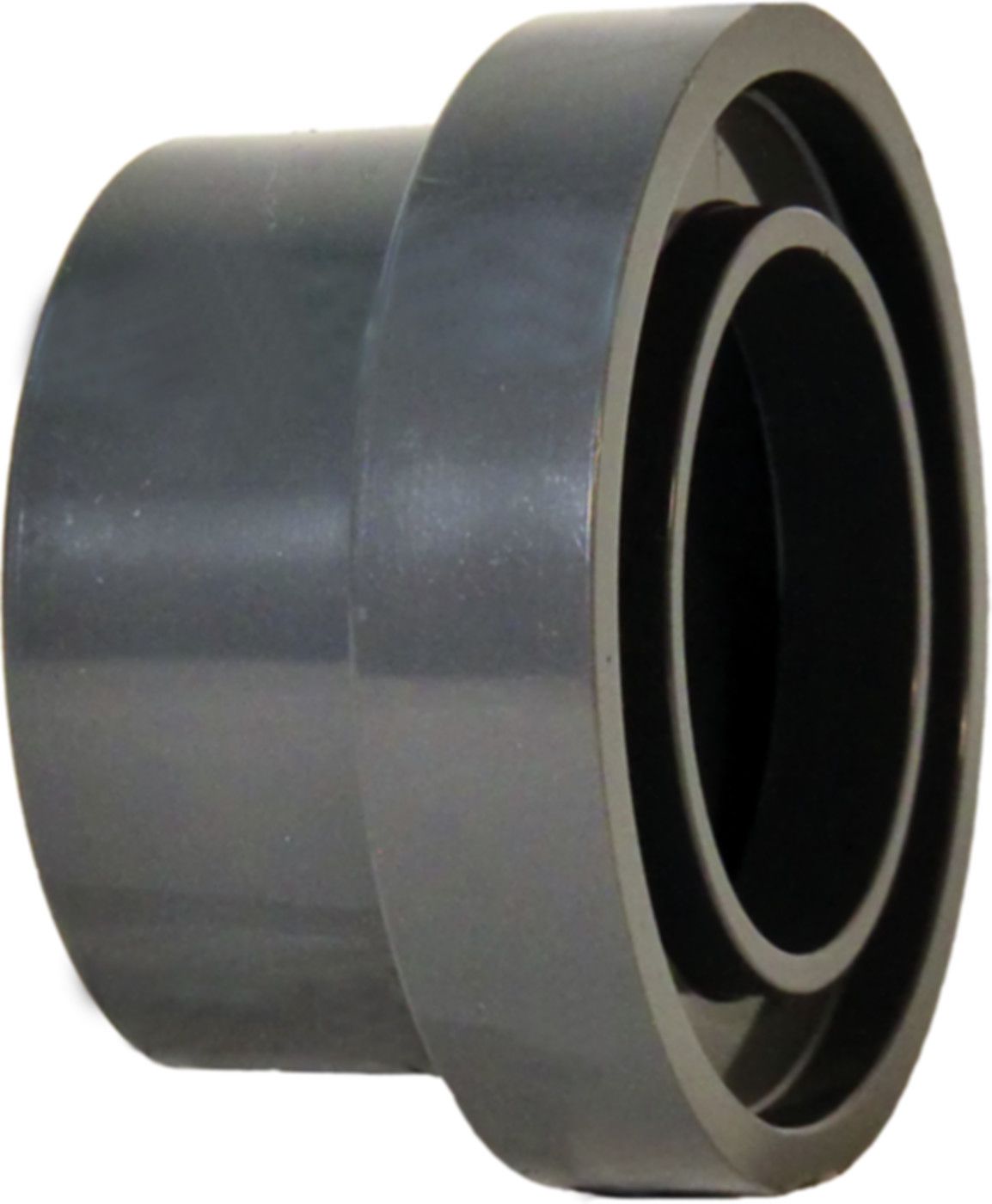

Bundbuchsen GF+ PVC-U
Dichtfläche mit Nut metrisch

Toutes les variantes
N° d'article7218101
Klebefitting PVC-U
18 de 18

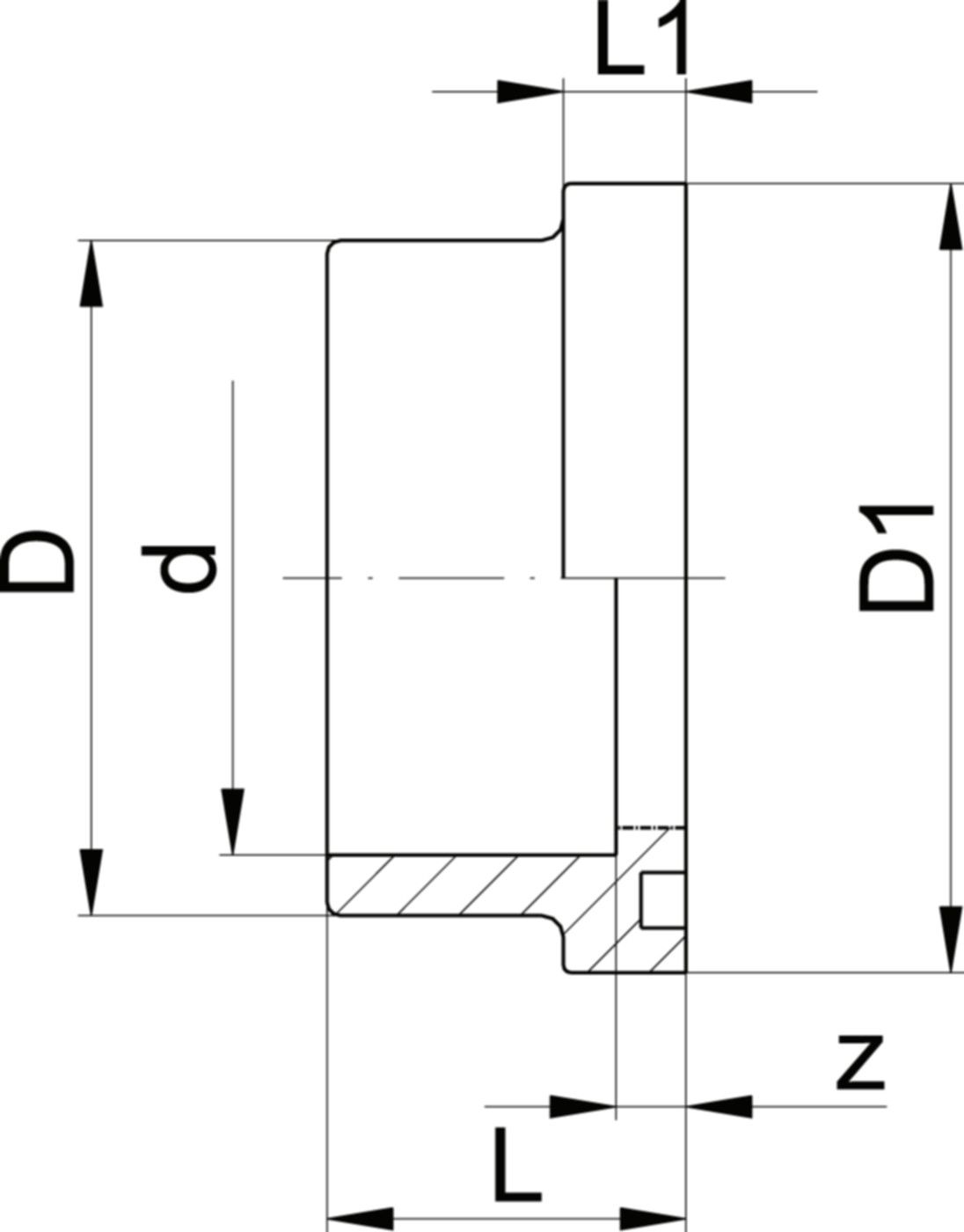

D [mm]
Ø d [mm]
NPK-Nr.
L1 [mm]
D1 [mm]
L [mm]
DN
z [mm]
Trouvé: 18
PN [bar]: 16
D [mm]: 22
Ø d [mm]: 16
L2 [mm]: ---
NPK-Nr.: 535.351
G [Zoll]: ---
L1 [mm]: 9
D1 [mm]: 29
L [mm]: 20
DN: 10
z [mm]: 6
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbuchsen GF+ PVC-U PN16 d16 - Dichtfläche mit Nut metrisch

N° d'article 721810105
...

PN [bar]: 16
D [mm]: 27
Ø d [mm]: 20
L2 [mm]: ---
NPK-Nr.: 535.352
G [Zoll]: ---
L1 [mm]: 9
D1 [mm]: 34
L [mm]: 22
DN: 15
z [mm]: 6
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbuchsen GF+ PVC-U PN16 d20 - Dichtfläche mit Nut metrisch

N° d'article 721810106
...

PN [bar]: 16
D [mm]: 33
Ø d [mm]: 25
L2 [mm]: ---
NPK-Nr.: 535.353
G [Zoll]: ---
L1 [mm]: 10
D1 [mm]: 41
L [mm]: 25
DN: 20
z [mm]: 6
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbuchsen GF+ PVC-U PN16 d25 - Dichtfläche mit Nut metrisch

N° d'article 721810107
...

PN [bar]: 16
D [mm]: 41
Ø d [mm]: 32
L2 [mm]: ---
NPK-Nr.: 535.354
G [Zoll]: ---
L1 [mm]: 10
D1 [mm]: 50
L [mm]: 28
DN: 25
z [mm]: 6
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbuchsen GF+ PVC-U PN16 d32 - Dichtfläche mit Nut metrisch

N° d'article 721810108
...

PN [bar]: 16
D [mm]: 50
Ø d [mm]: 40
L2 [mm]: ---
NPK-Nr.: 535.355
G [Zoll]: ---
L1 [mm]: 13
D1 [mm]: 61
L [mm]: 34
DN: 32
z [mm]: 8
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbuchsen GF+ PVC-U PN16 d40 - Dichtfläche mit Nut metrisch

N° d'article 721810109
...

PN [bar]: 16
D [mm]: 61
Ø d [mm]: 50
L2 [mm]: ---
NPK-Nr.: 535.356
G [Zoll]: ---
L1 [mm]: 13
D1 [mm]: 73
L [mm]: 39
DN: 40
z [mm]: 8
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbuchsen GF+ PVC-U PN16 d50 - Dichtfläche mit Nut metrisch

N° d'article 721810110
...

PN [bar]: 16
D [mm]: 77
Ø d [mm]: 63
L2 [mm]: ---
NPK-Nr.: 535.357
G [Zoll]: ---
L1 [mm]: 14
D1 [mm]: 90
L [mm]: 46
DN: 50
z [mm]: 8
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbuchsen GF+ PVC-U PN16 d63 - Dichtfläche mit Nut metrisch

N° d'article 721810111
...

PN [bar]: 16
D [mm]: 91
Ø d [mm]: 75
L2 [mm]: ---
NPK-Nr.: 535.358
G [Zoll]: ---
L1 [mm]: 15
D1 [mm]: 106
L [mm]: 52
DN: 65
z [mm]: 8
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbuchsen GF+ PVC-U PN16 d75 - Dichtfläche mit Nut metrisch

N° d'article 721810112
...

PN [bar]: 16
D [mm]: 108
Ø d [mm]: 90
L2 [mm]: ---
NPK-Nr.: 535.361
G [Zoll]: ---
L1 [mm]: 16
D1 [mm]: 125
L [mm]: 61
DN: 80
z [mm]: 10
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbuchsen GF+ PVC-U PN16 d90 - Dichtfläche mit Nut metrisch

N° d'article 721810113
...

PN [bar]: 16
D [mm]: 131
Ø d [mm]: 110
L2 [mm]: ---
NPK-Nr.: 535.362
G [Zoll]: ---
L1 [mm]: 18
D1 [mm]: 150
L [mm]: 72
DN: 100
z [mm]: 11
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbuchsen GF+ PVC-U PN16 d110 - Dichtfläche mit Nut metrisch

N° d'article 721810114
...

PN [bar]: ---
D [mm]: ---
Ø d [mm]: ---
L2 [mm]: ---
NPK-Nr.: ---
G [Zoll]: ---
L1 [mm]: ---
D1 [mm]: ---
L [mm]: ---
DN: ---
z [mm]: ---
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbu Nut PVC-U PN16 d125

N° d'article 721810115
...

PN [bar]: ---
D [mm]: ---
Ø d [mm]: ---
L2 [mm]: ---
NPK-Nr.: ---
G [Zoll]: ---
L1 [mm]: ---
D1 [mm]: ---
L [mm]: ---
DN: ---
z [mm]: ---
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbu Nut PVC-U PN16 d140

N° d'article 721810116
...

PN [bar]: ---
D [mm]: ---
Ø d [mm]: ---
L2 [mm]: ---
NPK-Nr.: ---
G [Zoll]: ---
L1 [mm]: ---
D1 [mm]: ---
L [mm]: ---
DN: ---
z [mm]: ---
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbu Nut PVC-U PN16 d160

N° d'article 721810117
...

PN [bar]: ---
D [mm]: ---
Ø d [mm]: ---
L2 [mm]: ---
NPK-Nr.: ---
G [Zoll]: ---
L1 [mm]: ---
D1 [mm]: ---
L [mm]: ---
DN: ---
z [mm]: ---
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbu Nut PVC-U PN10 d200DN200

N° d'article 721810119
...

PN [bar]: ---
D [mm]: ---
Ø d [mm]: ---
L2 [mm]: ---
NPK-Nr.: ---
G [Zoll]: ---
L1 [mm]: ---
D1 [mm]: ---
L [mm]: ---
DN: ---
z [mm]: ---
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbu Nut PVC-U PN10 d225

N° d'article 721810120
...

PN [bar]: ---
D [mm]: ---
Ø d [mm]: ---
L2 [mm]: ---
NPK-Nr.: ---
G [Zoll]: ---
L1 [mm]: ---
D1 [mm]: ---
L [mm]: ---
DN: ---
z [mm]: ---
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbu Nut PVC-U PN10 d250

N° d'article 721810121
...

PN [bar]: ---
D [mm]: ---
Ø d [mm]: ---
L2 [mm]: ---
NPK-Nr.: ---
G [Zoll]: ---
L1 [mm]: ---
D1 [mm]: ---
L [mm]: ---
DN: ---
z [mm]: ---
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbu Nut PVC-U PN10 d280

N° d'article 721810122
...

PN [bar]: ---
D [mm]: ---
Ø d [mm]: ---
L2 [mm]: ---
NPK-Nr.: ---
G [Zoll]: ---
L1 [mm]: ---
D1 [mm]: ---
L [mm]: ---
DN: ---
z [mm]: ---
r [mm]: ---
H [mm]: ---
AL: ---
D2 [mm]: ---
SC: ---
D3 [mm]: ---
d [Zoll]: ---
Bundbu Nut PVC-U PN6 d315

N° d'article 721810123
...


Description

- Dichtfläche mit Nut metrisch
- Klebemuffe metrisch
- Gegenstück: Bundbuchse flach Nr. 21 80 01
- Bundbuchse kombiniert (d160, d200, d225) Nr. 21 79 01
- Dichtung: O-Ring EPDM Nr. 748410000, FKM Nr. 749410000
- Flansch: PVC-U Nr. 721700005, PP/Stahl Nr. 727700206, PP-V Nr. 727700406
