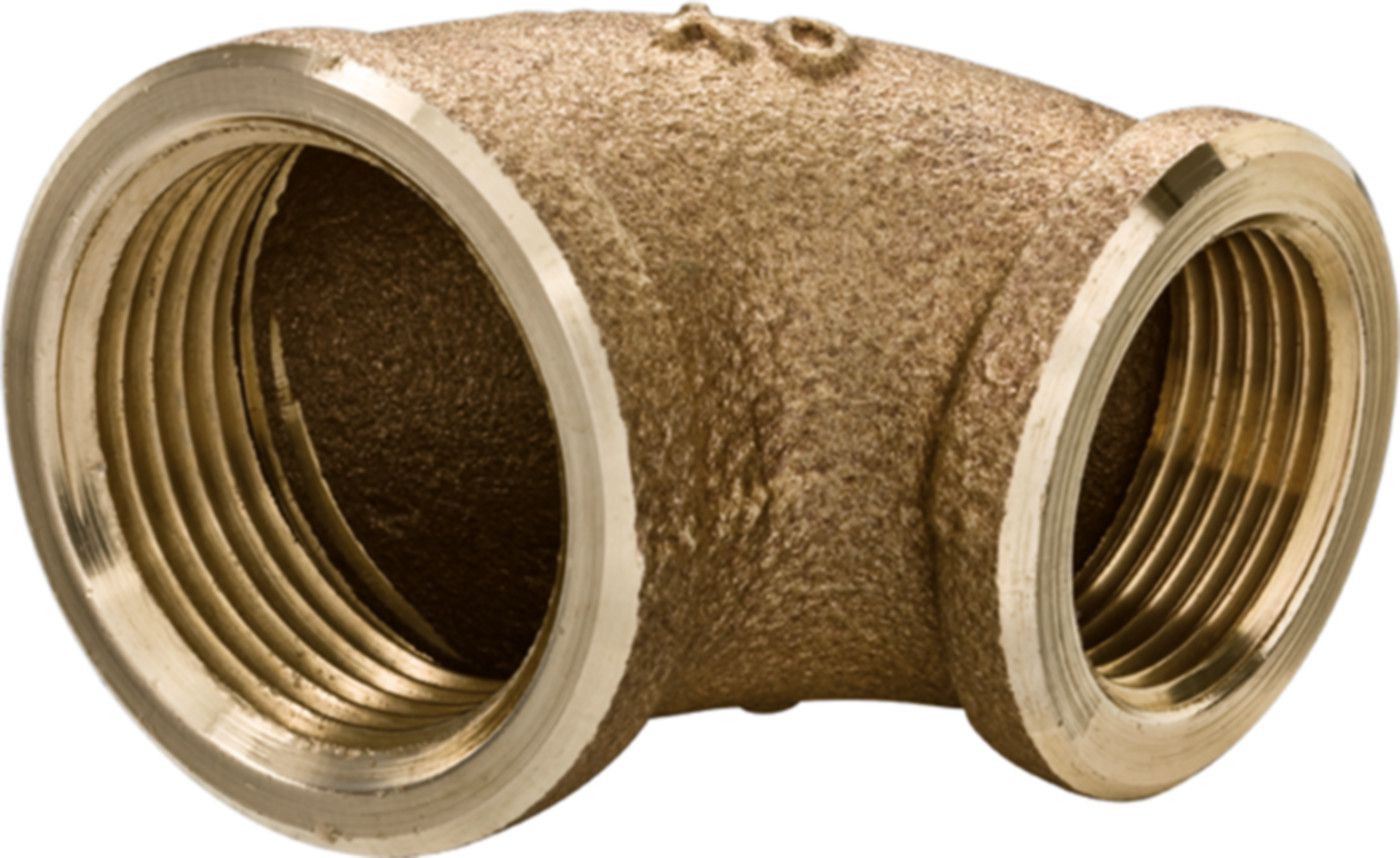

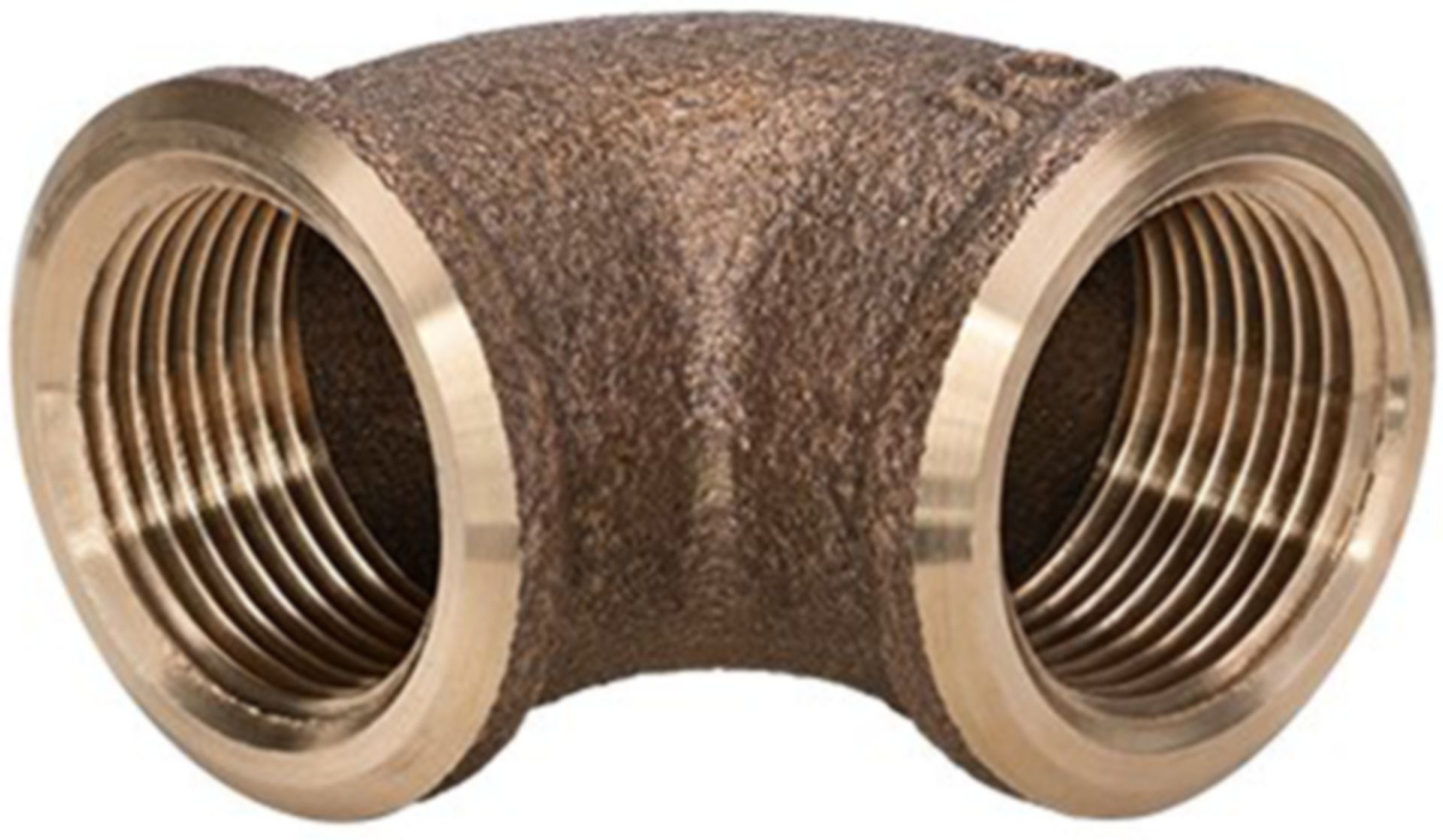

Winkel Rotguss 90°

Alle Varianten
Artikel-Nr:4.0090
Raric
17 von 17
Flags
L [mm]
Z [mm]
Zeta
IG (Rp) [Zoll]
Z2 [mm]
IG (Rp1) [Zoll]
Z1 [mm]
L2 [mm]
L1 [mm]
Gefunden: 17
Material: ---

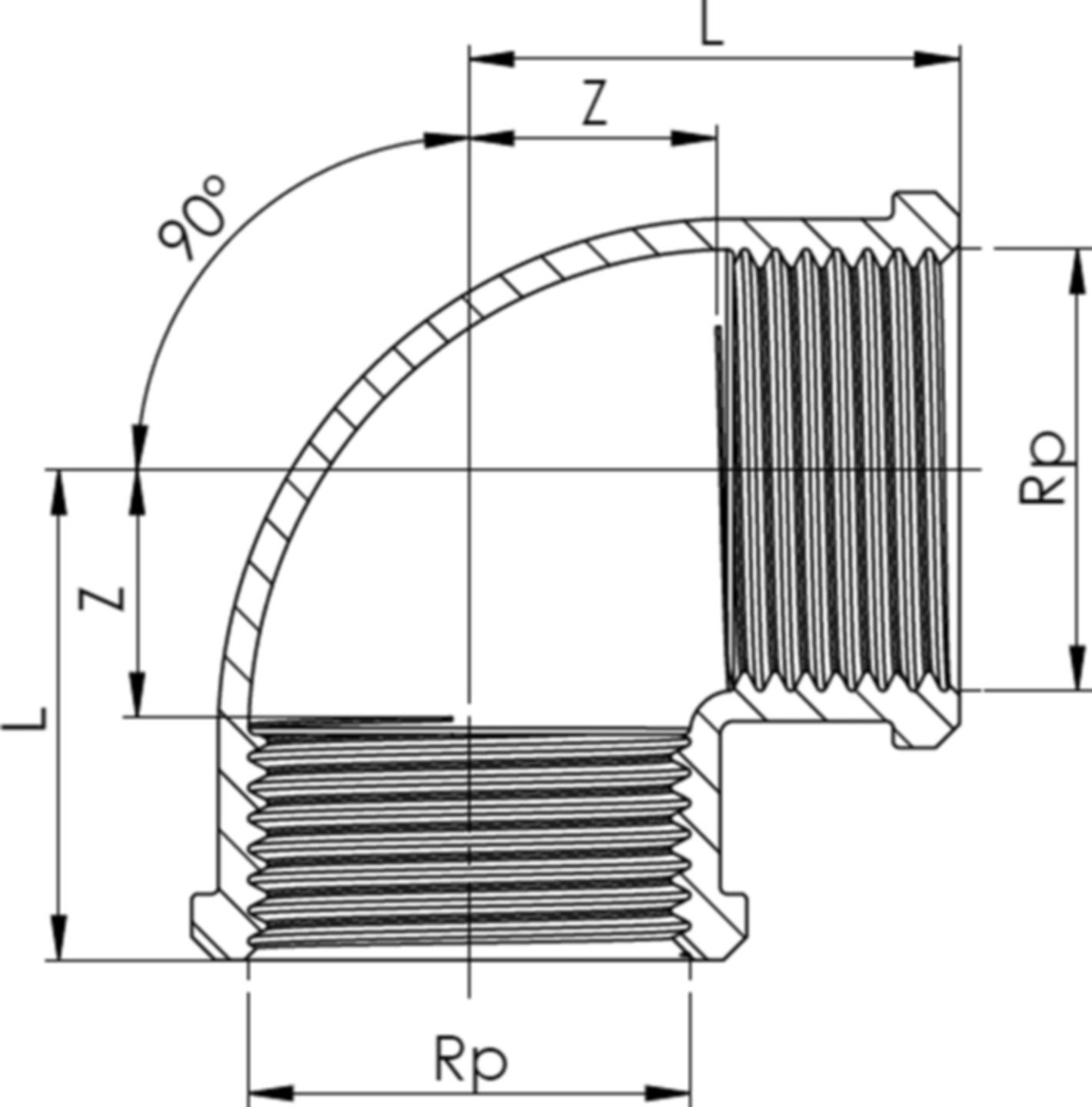

L [mm]: 16
Z [mm]: 8
Winkel [°]: 90
Zeta: --
IG (Rp) [Zoll]: 1/4
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 1/4"

Artikel-Nr: R090.1
...

Material: Rotguss
L [mm]: 21
Z [mm]: 11
Winkel [°]: 90
Zeta: --
IG (Rp) [Zoll]: 3/8
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 3/8"

Artikel-Nr: R090.2
...

Material: Rotguss
L [mm]: 27
Z [mm]: 13.5
Winkel [°]: 90
Zeta: 1.5
IG (Rp) [Zoll]: 1/2
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 1/2"

Artikel-Nr: R090.3
...

Material: Rotguss
L [mm]: ---
Z [mm]: ---
Winkel [°]: 90
Zeta: ---
IG (Rp) [Zoll]: 1/2

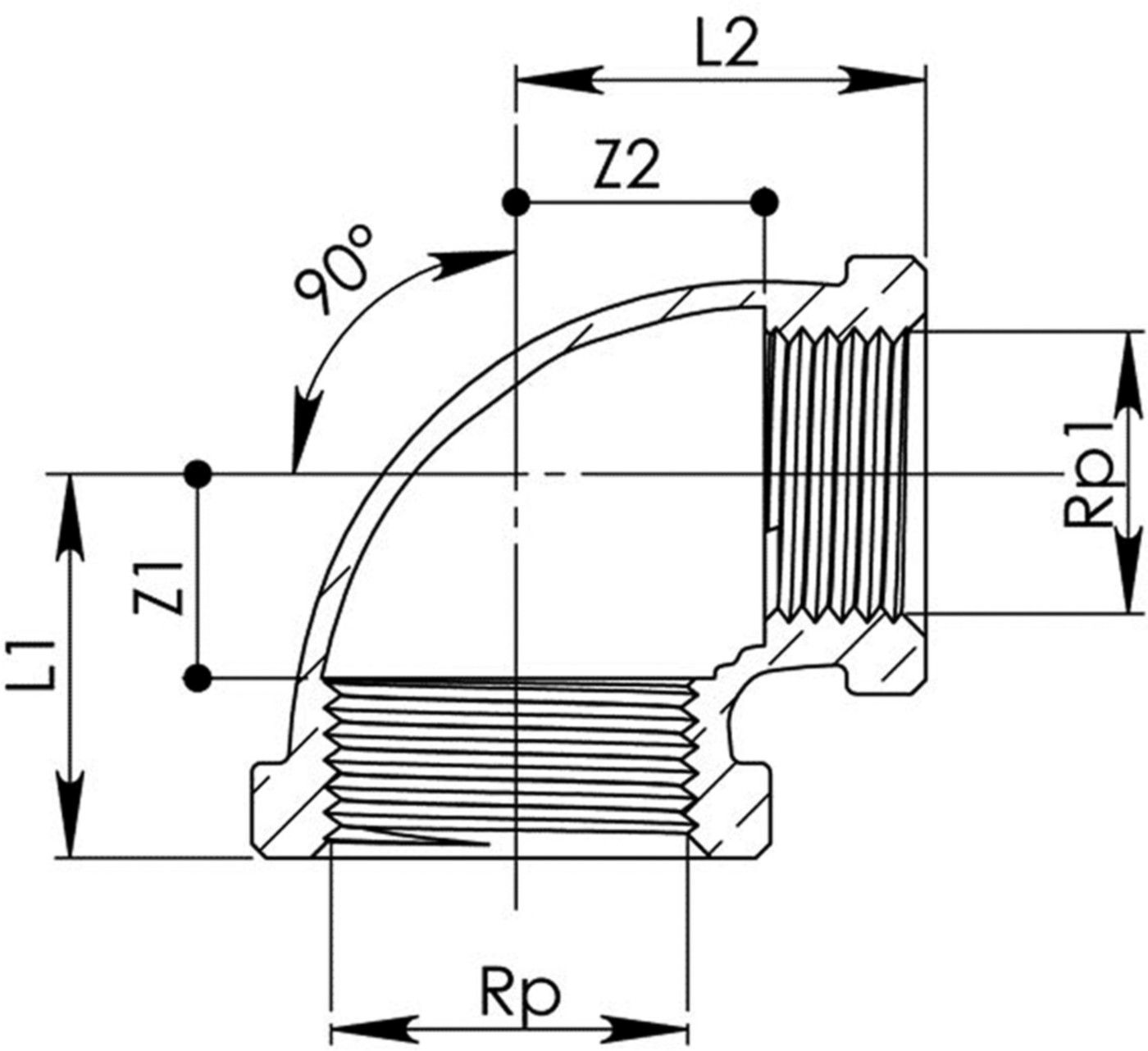

Z2 [mm]: 15
IG (Rp1) [Zoll]: 3/8
Z1 [mm]: 11
L2 [mm]: 24
L1 [mm]: 23
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 1/2"-3/8"

Artikel-Nr: R090.32
...

Material: Rotguss
L [mm]: 31.5
Z [mm]: 16.5
Winkel [°]: 90
Zeta: 1.3
IG (Rp) [Zoll]: 3/4
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 3/4"

Artikel-Nr: R090.4
...

Material: Rotguss
L [mm]: ---
Z [mm]: ---
Winkel [°]: 90
Zeta: ---
IG (Rp) [Zoll]: 3/4
Z2 [mm]: 20
IG (Rp1) [Zoll]: 1/2
Z1 [mm]: 16
L2 [mm]: 29
L1 [mm]: 26
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 3/4"-1/2"

Artikel-Nr: R090.43
...

Material: Rotguss
L [mm]: 37
Z [mm]: 20
Winkel [°]: 90
Zeta: 0.7
IG (Rp) [Zoll]: 1
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 1"

Artikel-Nr: R090.5
...

Material: Rotguss
L [mm]: ---
Z [mm]: ---
Winkel [°]: 90
Zeta: ---
IG (Rp) [Zoll]: 1
Z2 [mm]: 22
IG (Rp1) [Zoll]: 3/4
Z1 [mm]: 22
L2 [mm]: 33
L1 [mm]: 33
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 1" -3/4"

Artikel-Nr: R090.54
...

Material: Rotguss
L [mm]: 43.5
Z [mm]: 24.5
Winkel [°]: 90
Zeta: 0.6
IG (Rp) [Zoll]: 1 1/4
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 5/4"

Artikel-Nr: R090.6
...

Material: Rotguss
L [mm]: ---
Z [mm]: ---
Winkel [°]: 90
Zeta: ---
IG (Rp) [Zoll]: 1 1/4
Z2 [mm]: 27
IG (Rp1) [Zoll]: 1
Z1 [mm]: 23
L2 [mm]: 40
L1 [mm]: 38
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 5/4"- 1"

Artikel-Nr: R090.65
...

Material: Rotguss
L [mm]: 47
Z [mm]: 28
Winkel [°]: 90
Zeta: 0.6
IG (Rp) [Zoll]: 1 1/2
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 11/2"

Artikel-Nr: R090.7
...

Material: Rotguss
L [mm]: ---
Z [mm]: ---
Winkel [°]: 90
Zeta: ---
IG (Rp) [Zoll]: 1 1/2
Z2 [mm]: 28
IG (Rp1) [Zoll]: 1
Z1 [mm]: 21
L2 [mm]: 42
L1 [mm]: 40
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 11/2"- 1"

Artikel-Nr: R090.75
...

Material: Rotguss
L [mm]: ---
Z [mm]: ---
Winkel [°]: 90
Zeta: ---
IG (Rp) [Zoll]: 1 1/2
Z2 [mm]: 30
IG (Rp1) [Zoll]: 1 1/4
Z1 [mm]: 29
L2 [mm]: 40
L1 [mm]: 47
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 11/2"-11/4"

Artikel-Nr: R090.76
...

Material: Rotguss
L [mm]: 58
Z [mm]: 34
Winkel [°]: 90
Zeta: 0.5
IG (Rp) [Zoll]: 2
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 2"

Artikel-Nr: R090.8
...

Material: Rotguss
L [mm]: ---
Z [mm]: ---
Winkel [°]: 90
Zeta: ---
IG (Rp) [Zoll]: 2
Z2 [mm]: 38
IG (Rp1) [Zoll]: 1 1/2
Z1 [mm]: 31
L2 [mm]: 51
L1 [mm]: 47
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 2" -11/2"

Artikel-Nr: R090.87
...

Material: Rotguss
L [mm]: 68
Z [mm]: 47
Winkel [°]: 90
Zeta: --
IG (Rp) [Zoll]: 2 1/2
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 21/2"

Artikel-Nr: R090.9
...

Material: ---
L [mm]: 78
Z [mm]: 54
Winkel [°]: 90
Zeta: --
IG (Rp) [Zoll]: 3
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel Nr. 90 3"

Artikel-Nr: R090.A
...


Beschreibung

- Reduziert
- Rotguss CC499K
- Gewindeart: IG-Rp / ISO 7-1
- SVGW Wasser 1/2" - 4"
- SVGW Gas 1/4" - 2"
- DVGW 3/8" - 2"
