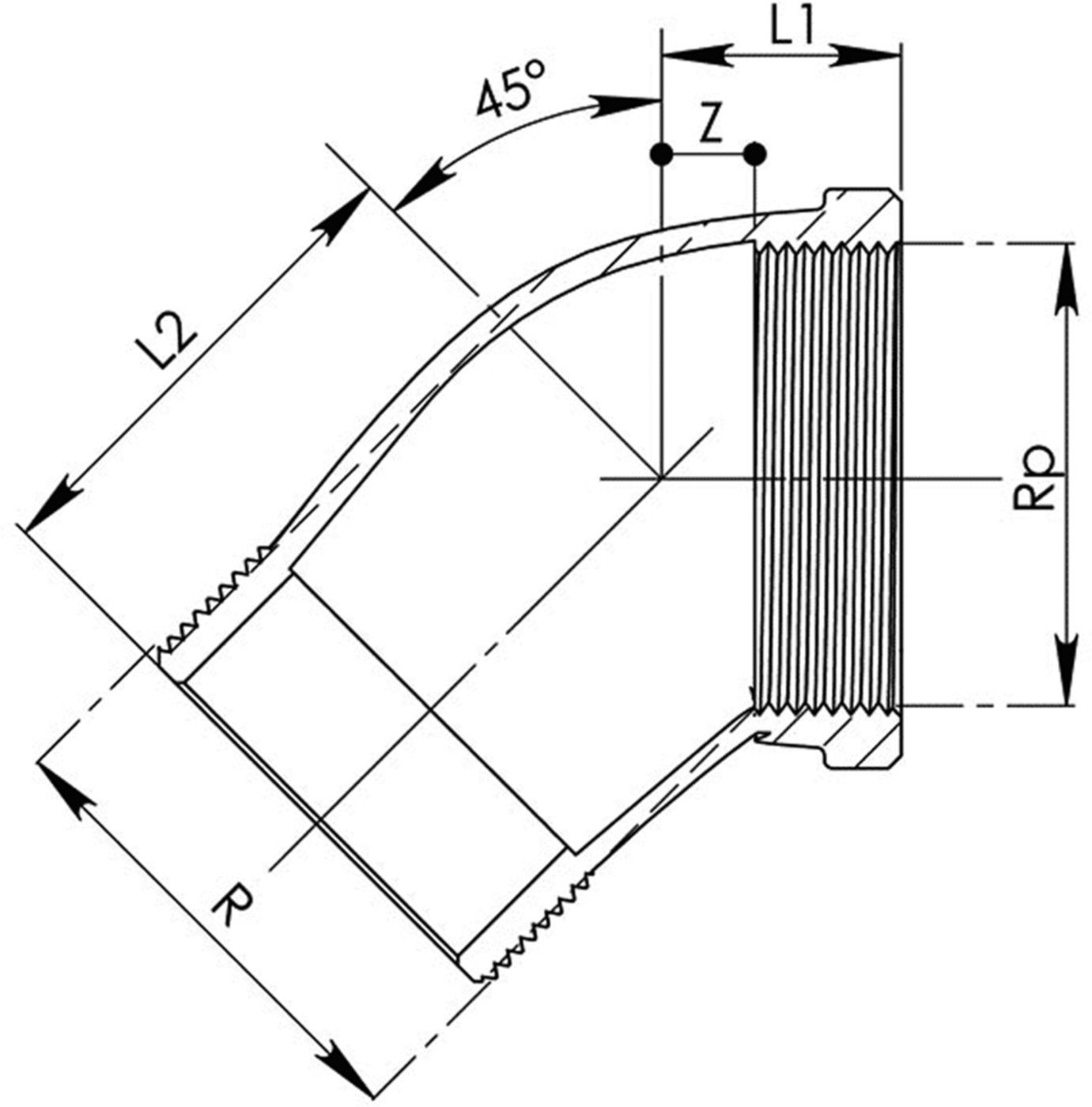

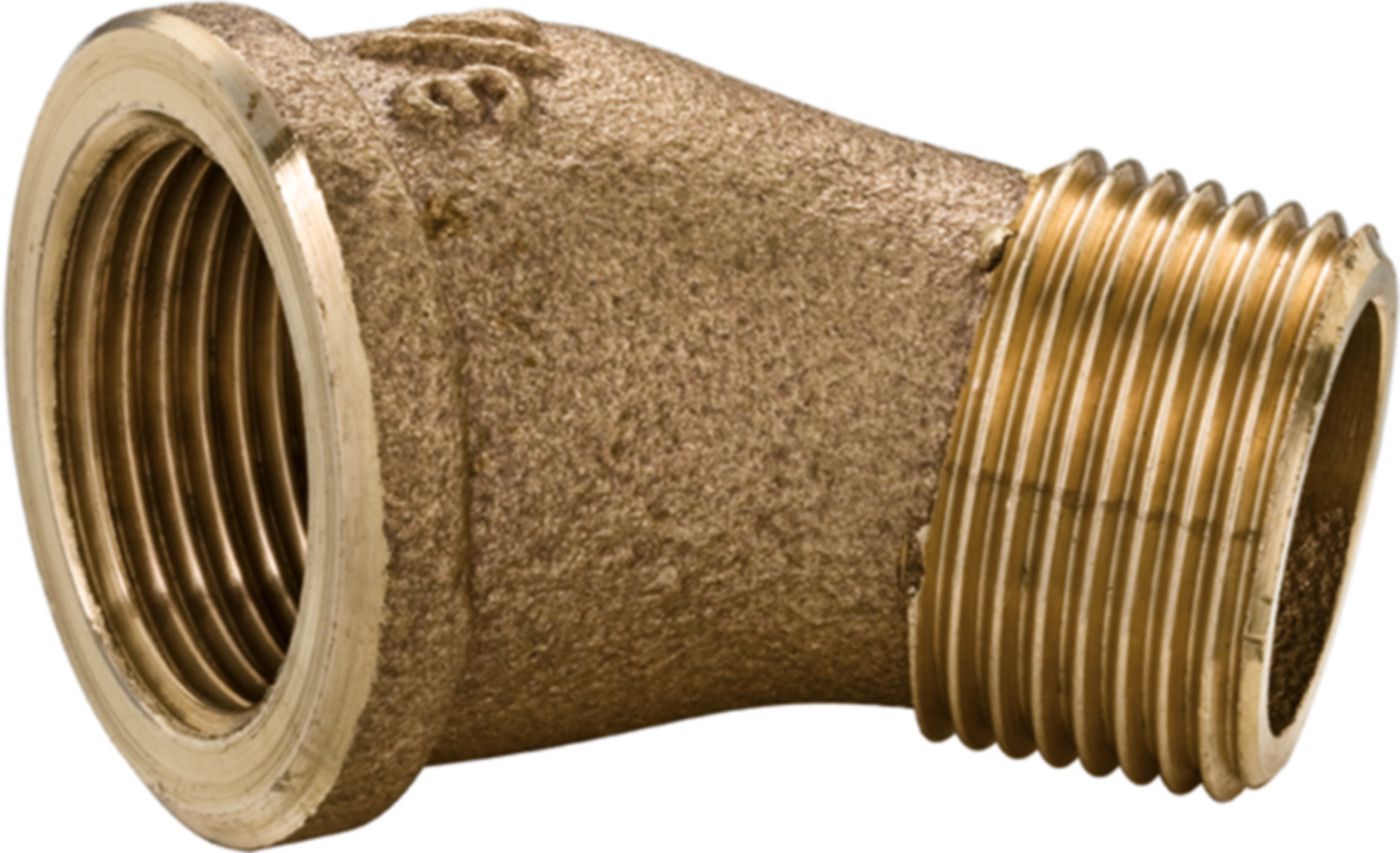

Winkel Rotguss 45° Nr.121

Alle Varianten
Artikel-Nr:4.0121
Raric
7 von 7
Z [mm]
IG (Rp) [Zoll]
L2 [mm]
L1 [mm]
AG (R) [Zoll]
Gefunden: 7
Material: Rotguss
L [mm]: ---
Z [mm]: 6
Winkel [°]: 45
Zeta: ---
IG (Rp) [Zoll]: 3/8
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: 28
L1 [mm]: 13
AG (R) [Zoll]: 3/8
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel 45° Nr.121 3/8"

Artikel-Nr: R121.2
...

Material: Rotguss
L [mm]: ---
Z [mm]: 7
Winkel [°]: 45
Zeta: ---
IG (Rp) [Zoll]: 1/2
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: 31
L1 [mm]: 18
AG (R) [Zoll]: 1/2
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel 45° Nr.121 1/2"

Artikel-Nr: R121.3
...

Material: Rotguss
L [mm]: ---
Z [mm]: 8
Winkel [°]: 45
Zeta: ---
IG (Rp) [Zoll]: 3/4
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: 35
L1 [mm]: 20
AG (R) [Zoll]: 3/4
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel 45° Nr.121 3/4"

Artikel-Nr: R121.4
...

Material: Rotguss
L [mm]: ---
Z [mm]: 12
Winkel [°]: 45
Zeta: ---
IG (Rp) [Zoll]: 1
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: 42
L1 [mm]: 25
AG (R) [Zoll]: 1
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel 45° Nr.121 1"

Artikel-Nr: R121.5
...

Material: Rotguss
L [mm]: ---
Z [mm]: 12
Winkel [°]: 45
Zeta: ---
IG (Rp) [Zoll]: 1 1/4
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: 48
L1 [mm]: 30
AG (R) [Zoll]: 1 1/4
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel 45° Nr.121 11/4"

Artikel-Nr: R121.6
...

Material: Rotguss
L [mm]: ---
Z [mm]: 16
Winkel [°]: 45
Zeta: ---
IG (Rp) [Zoll]: 1 1/2
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: 51
L1 [mm]: 31
AG (R) [Zoll]: 1 1/2
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel 45° Nr.121 11/2"

Artikel-Nr: R121.7
...

Material: Rotguss
L [mm]: ---
Z [mm]: 17
Winkel [°]: 45
Zeta: ---
IG (Rp) [Zoll]: 2
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: 62
L1 [mm]: 33
AG (R) [Zoll]: 2
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel 45° Nr.121 2"

Artikel-Nr: R121.8
...


Beschreibung

- Material: Rotguss CC499K
- Gewindeart: IG-Rp / AG-R / ISO 7-1
- SVGW Wasser 1/2" - 4"
- SVGW Gas 1/4" - 2"
- DVGW 3/8" - 2"
