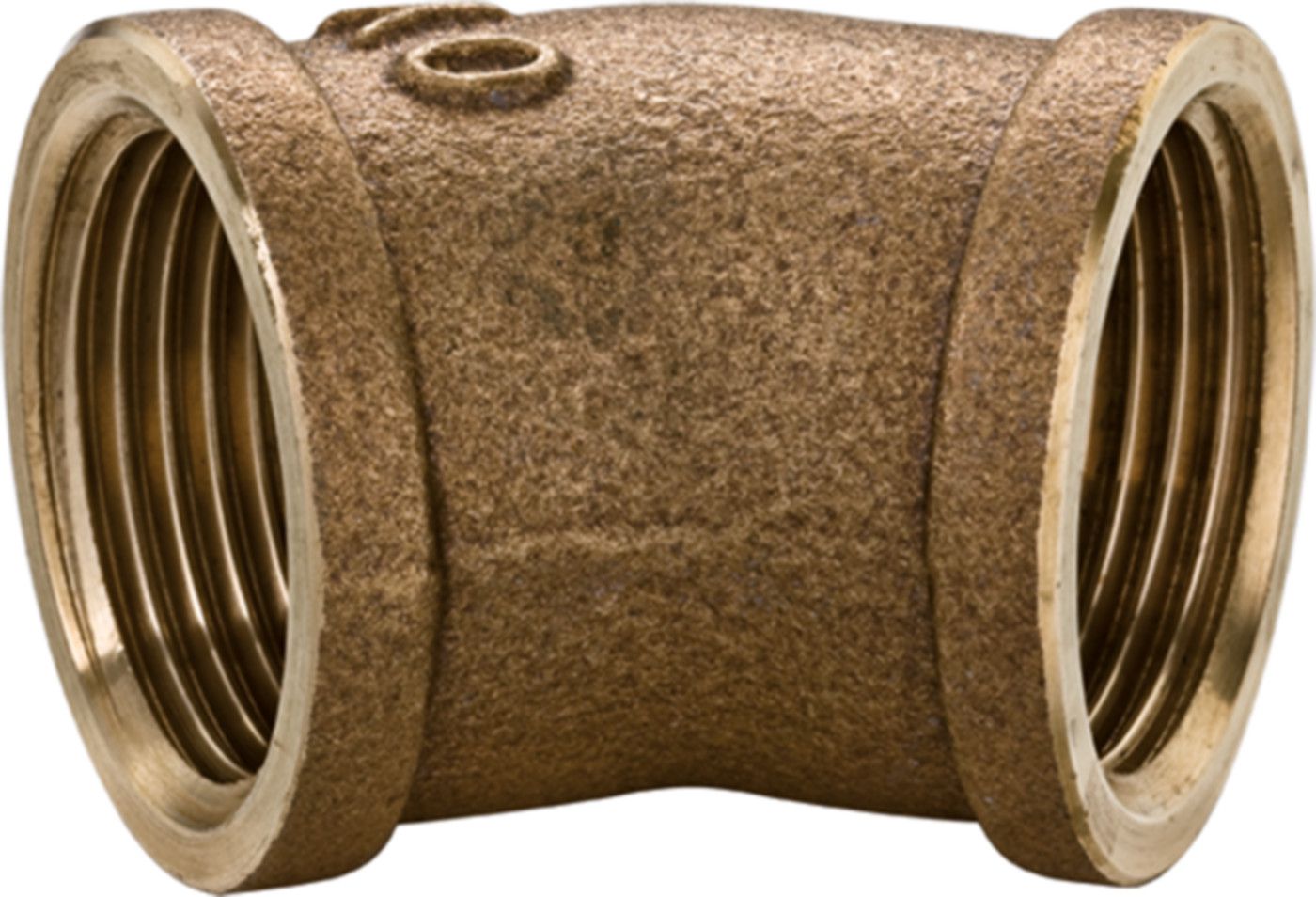

Winkel Rotguss 45° Nr.120

Alle Varianten
Artikel-Nr:4.0120
Raric
7 von 7

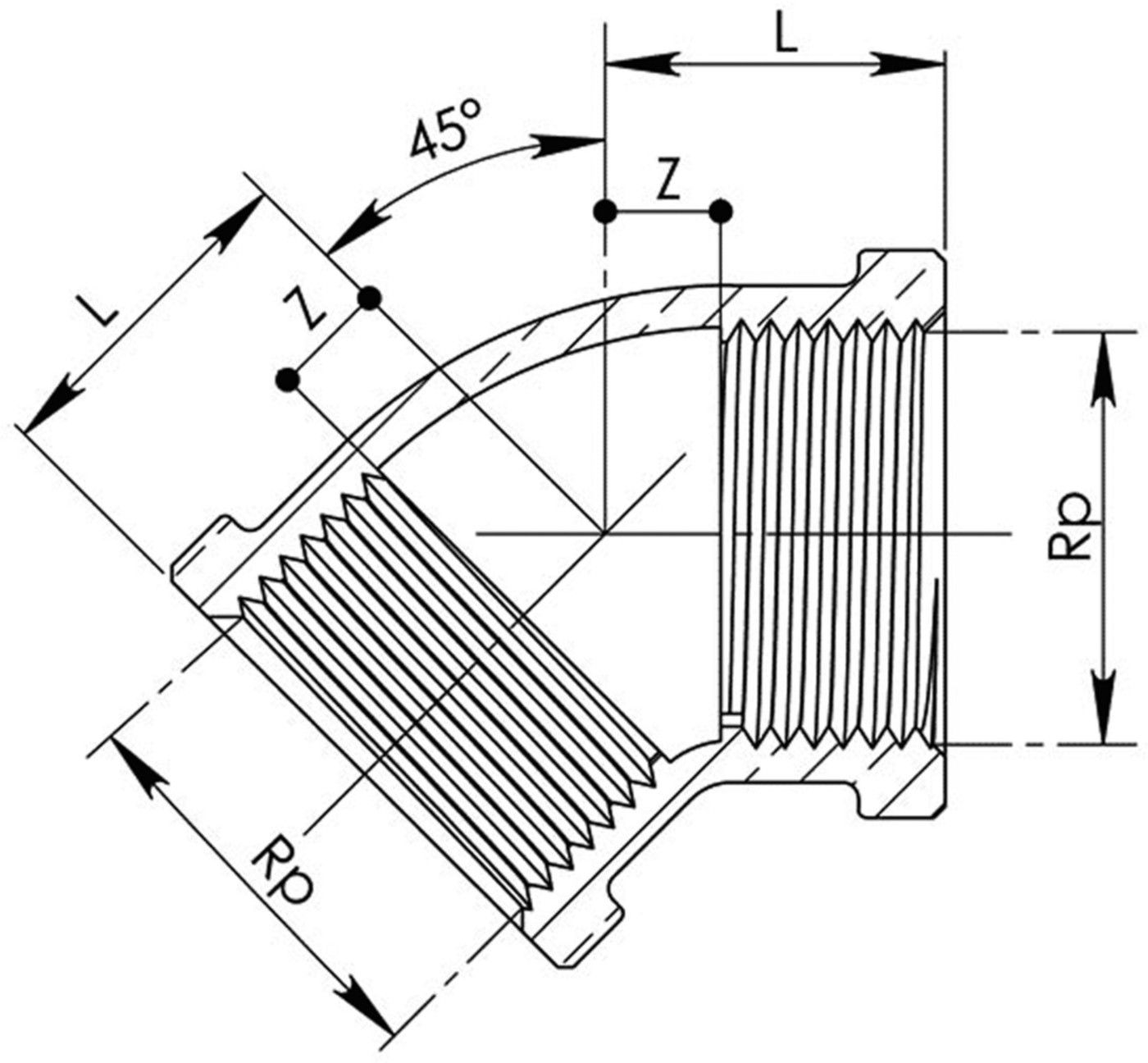

L [mm]
Z [mm]
IG (Rp) [Zoll]
Gefunden: 7
Material: Rotguss
L [mm]: 14
Z [mm]: 6
Winkel [°]: 45
Zeta: ---
IG (Rp) [Zoll]: 3/8
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel 45° Nr.120 3/8"

Artikel-Nr: R120.2
...

Material: Rotguss
L [mm]: 19
Z [mm]: 9
Winkel [°]: 45
Zeta: ---
IG (Rp) [Zoll]: 1/2
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel 45° Nr.120 1/2"

Artikel-Nr: R120.3
...

Material: Rotguss
L [mm]: 20
Z [mm]: 10
Winkel [°]: 45
Zeta: ---
IG (Rp) [Zoll]: 3/4
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel 45° Nr.120 3/4"

Artikel-Nr: R120.4
...

Material: Rotguss
L [mm]: 25
Z [mm]: 11
Winkel [°]: 45
Zeta: ---
IG (Rp) [Zoll]: 1
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel 45° Nr.120 1"

Artikel-Nr: R120.5
...

Material: Rotguss
L [mm]: 29
Z [mm]: 11
Winkel [°]: 45
Zeta: ---
IG (Rp) [Zoll]: 1 1/4
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel 45° Nr.120 11/4"

Artikel-Nr: R120.6
...

Material: Rotguss
L [mm]: 31
Z [mm]: 12
Winkel [°]: 45
Zeta: ---
IG (Rp) [Zoll]: 1 1/2
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel 45° Nr.120 11/2"

Artikel-Nr: R120.7
...

Material: Rotguss
L [mm]: 34
Z [mm]: 13
Winkel [°]: 45
Zeta: ---
IG (Rp) [Zoll]: 2
Z2 [mm]: ---
IG (Rp1) [Zoll]: ---
Z1 [mm]: ---
L2 [mm]: ---
L1 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: ---
A [mm]: ---
C [mm]: ---
G [mm]: ---
D [mm]: ---
E [mm]: ---
A [Zoll]: ---
F [mm]: ---
Winkel [°]: ---
Rotguss-Winkel 45° Nr.120 2"

Artikel-Nr: R120.8
...


Beschreibung

- Rotguss CC499K
- Gewindeart: IG-Rp / ISO 7-1
- SVGW Wasser 1/2" - 4"
- SVGW Gas 1/4" - 2"
- DVGW 3/8" - 2"
