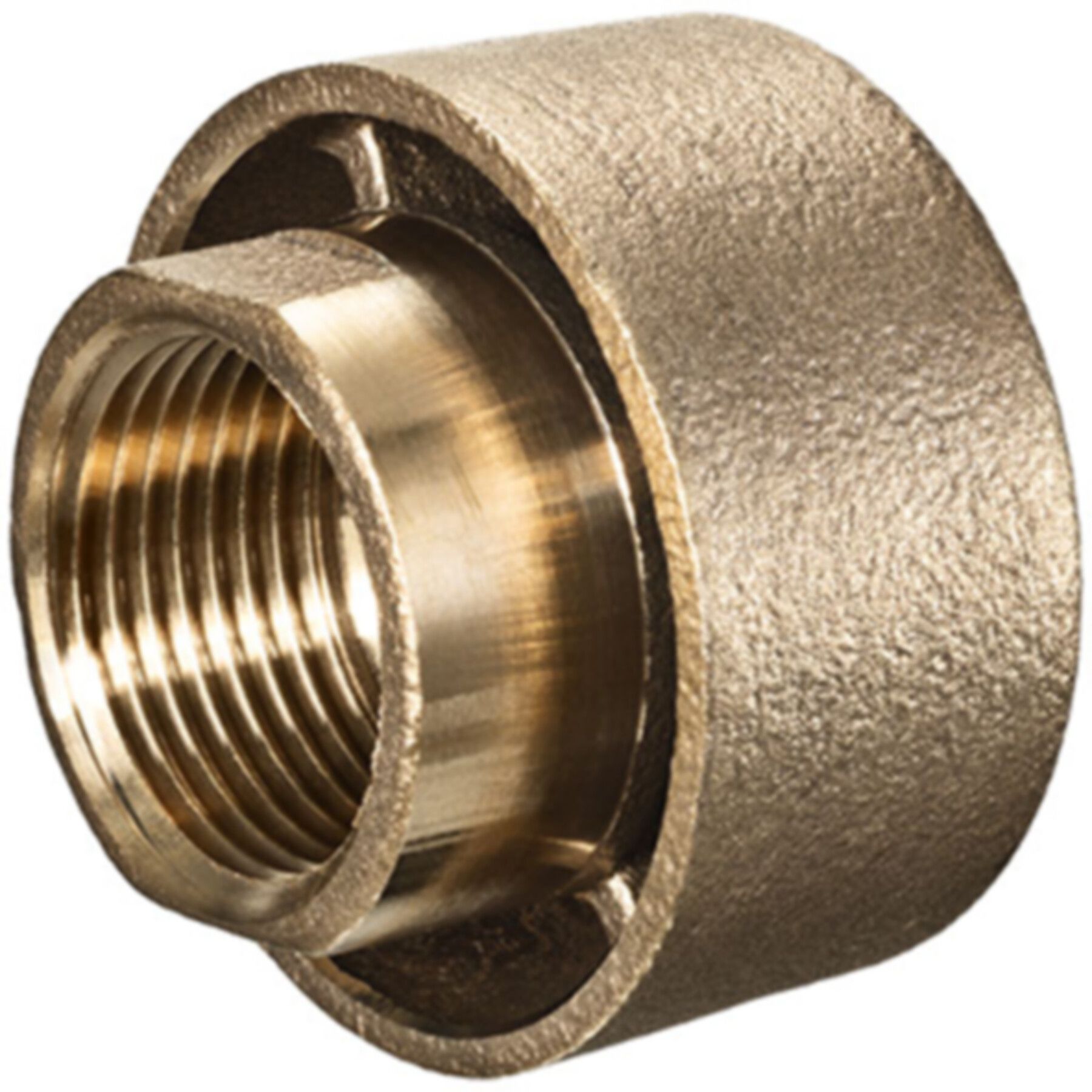

Überlaufkopf Rotguss

Alle Varianten
Artikel-Nr:4.G166
Raric
6 von 6

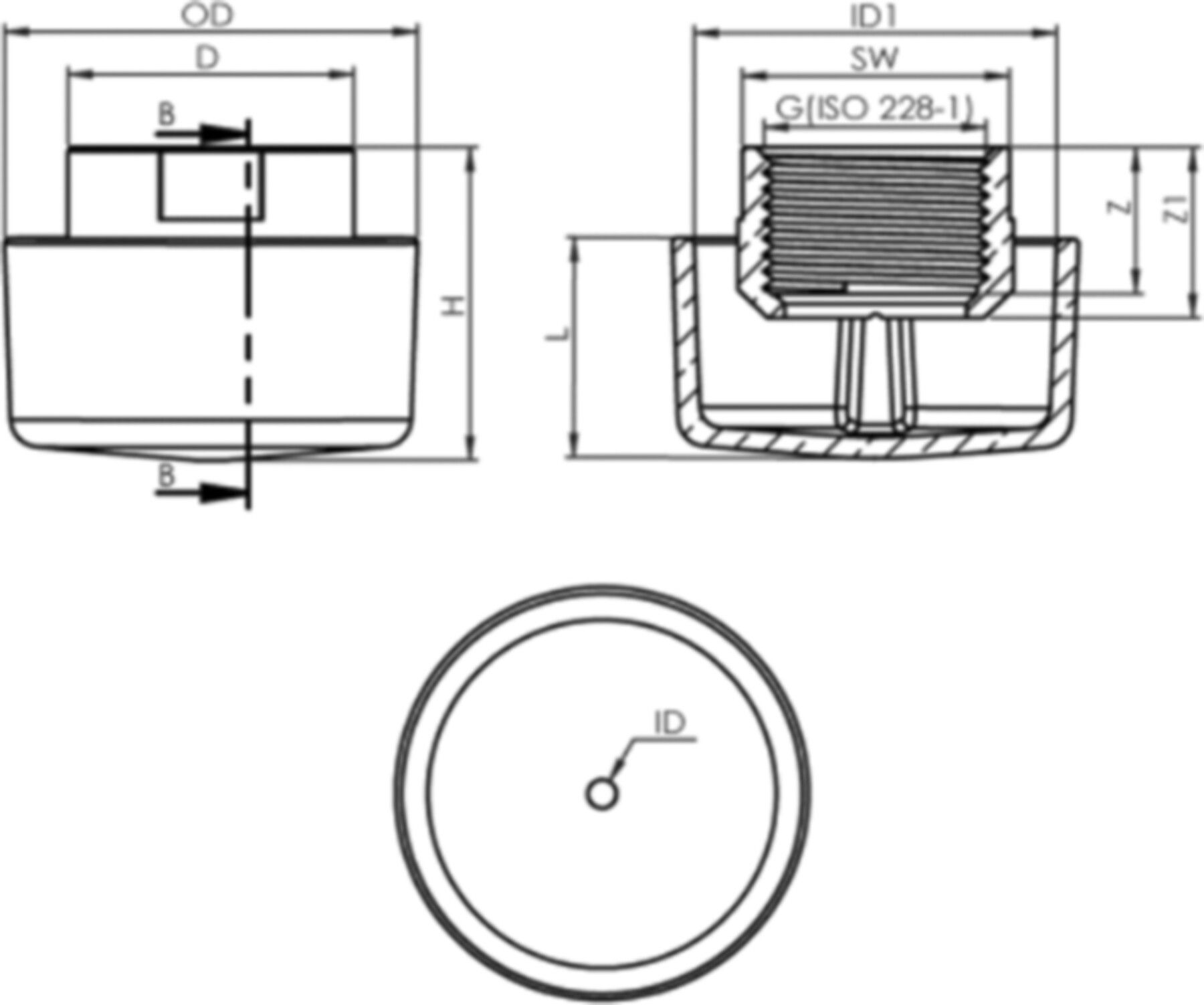

H [mm]
D [mm]
L [mm]
Z [mm]
OD [mm]
IG (G) [Zoll]
ID1 [mm]
Z1 [mm]
ID [mm]
SW [mm]
Gefunden: 6
Material: Rotguss
A [mm]: ---
d [mm]: ---
H [mm]: 44
D [mm]: 40
h [mm]: ---
l1 [mm]: ---
IG (Rp) [Zoll]: ---
L [mm]: 31
S [mm]: ---
L2 [mm]: ---
Z [mm]: 20
AG (G) [Zoll]: ---
L1 [mm]: ---
OD [mm]: 58
IG (G) [Zoll]: 1
ID1 [mm]: 52
Z1 [mm]: 25
ID [mm]: 4
SW [mm]: 37
Rotguss Überlaufkopf 1"

Artikel-Nr: RG166.5
...

Material: Rotguss
A [mm]: ---
d [mm]: ---
H [mm]: 50
D [mm]: 50
h [mm]: ---
l1 [mm]: ---
IG (Rp) [Zoll]: ---
L [mm]: 35
S [mm]: ---
L2 [mm]: ---
Z [mm]: 22
AG (G) [Zoll]: ---
L1 [mm]: ---
OD [mm]: 69
IG (G) [Zoll]: 1 1/4
ID1 [mm]: 63
Z1 [mm]: 27
ID [mm]: 5
SW [mm]: 47
Rotguss Überlaufkopf 11/4"

Artikel-Nr: RG166.6
...

Material: Rotguss
A [mm]: ---
d [mm]: ---
H [mm]: 55
D [mm]: 56
h [mm]: ---
l1 [mm]: ---
IG (Rp) [Zoll]: ---
L [mm]: 40
S [mm]: ---
L2 [mm]: ---
Z [mm]: 22
AG (G) [Zoll]: ---
L1 [mm]: ---
OD [mm]: 81
IG (G) [Zoll]: 1 1/2
ID1 [mm]: 76
Z1 [mm]: 27
ID [mm]: 5
SW [mm]: 53
Rotguss Überlaufkopf 11/2"

Artikel-Nr: RG166.7
...

Material: Rotguss
A [mm]: ---
d [mm]: ---
H [mm]: 65
D [mm]: 69
h [mm]: ---
l1 [mm]: ---
IG (Rp) [Zoll]: ---
L [mm]: 50
S [mm]: ---
L2 [mm]: ---
Z [mm]: 28
AG (G) [Zoll]: ---
L1 [mm]: ---
OD [mm]: 99
IG (G) [Zoll]: 2
ID1 [mm]: 93
Z1 [mm]: 32
ID [mm]: 6
SW [mm]: 64
Rotguss Überlaufkopf 2"

Artikel-Nr: RG166.8
...

Material: Rotguss
A [mm]: ---
d [mm]: ---
H [mm]: 77
D [mm]: 85
h [mm]: ---
l1 [mm]: ---
IG (Rp) [Zoll]: ---
L [mm]: 60
S [mm]: ---
L2 [mm]: ---
Z [mm]: 30
AG (G) [Zoll]: ---
L1 [mm]: ---
OD [mm]: 125
IG (G) [Zoll]: 2 1/2
ID1 [mm]: 118
Z1 [mm]: 35
ID [mm]: 7
SW [mm]: 80
Rotguss Überlaufkopf 21/2"

Artikel-Nr: RG166.9
...

Material: Rotguss
A [mm]: ---
d [mm]: ---
H [mm]: 91
D [mm]: 97
h [mm]: ---
l1 [mm]: ---
IG (Rp) [Zoll]: ---
L [mm]: 69
S [mm]: ---
L2 [mm]: ---
Z [mm]: 33
AG (G) [Zoll]: ---
L1 [mm]: ---
OD [mm]: 148
IG (G) [Zoll]: 3
ID1 [mm]: 139
Z1 [mm]: 39
ID [mm]: 8
SW [mm]: 94
Rotguss Überlaufkopf 3"

Artikel-Nr: RG166.A
...


Beschreibung

- Material: Rotguss CC499K
- Gewindeart: IG-G / ISO 228-1
