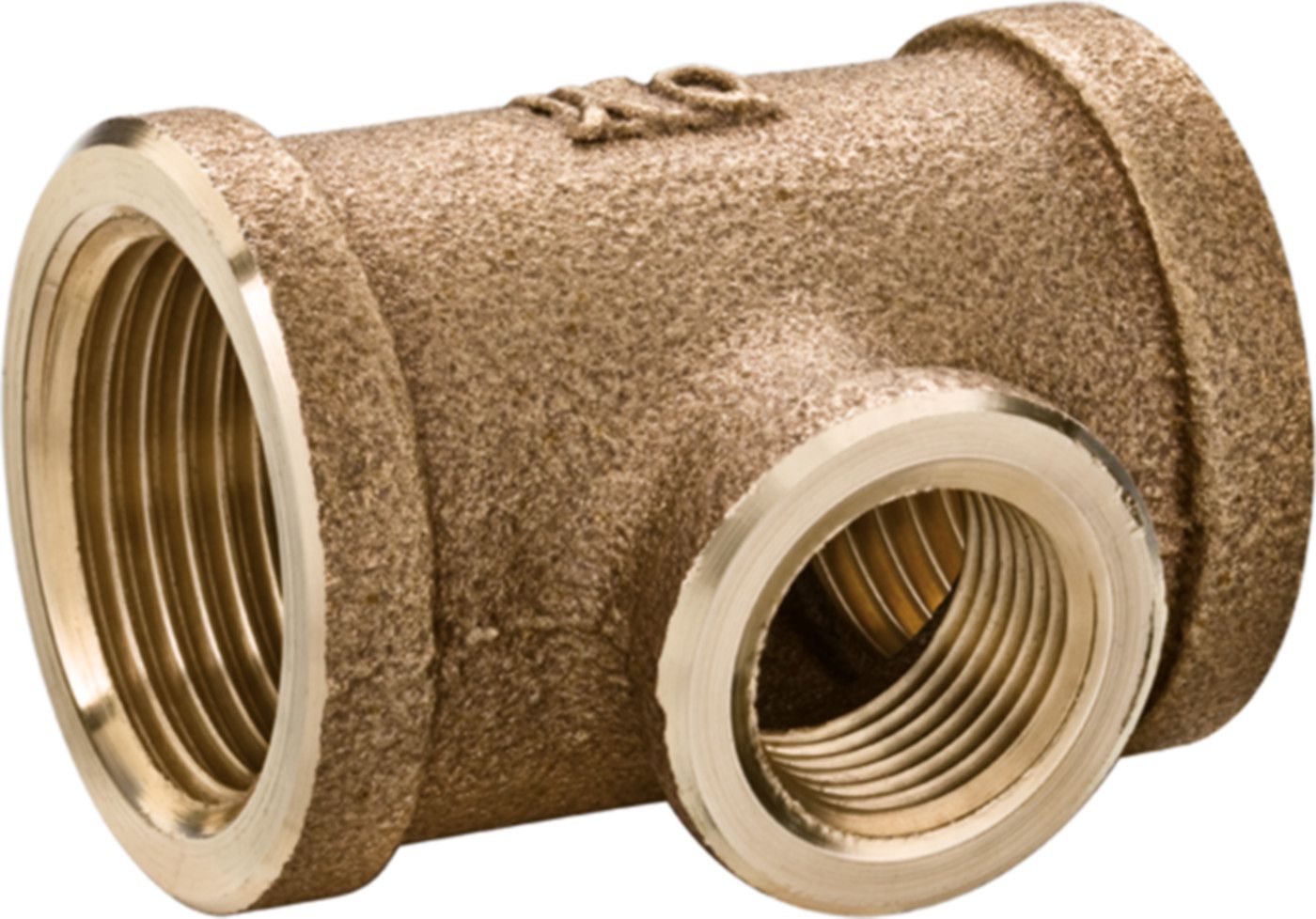

T-Stück reduziert Rotguss

Alle Varianten
Artikel-Nr:4.0130R
Raric
18 von 18

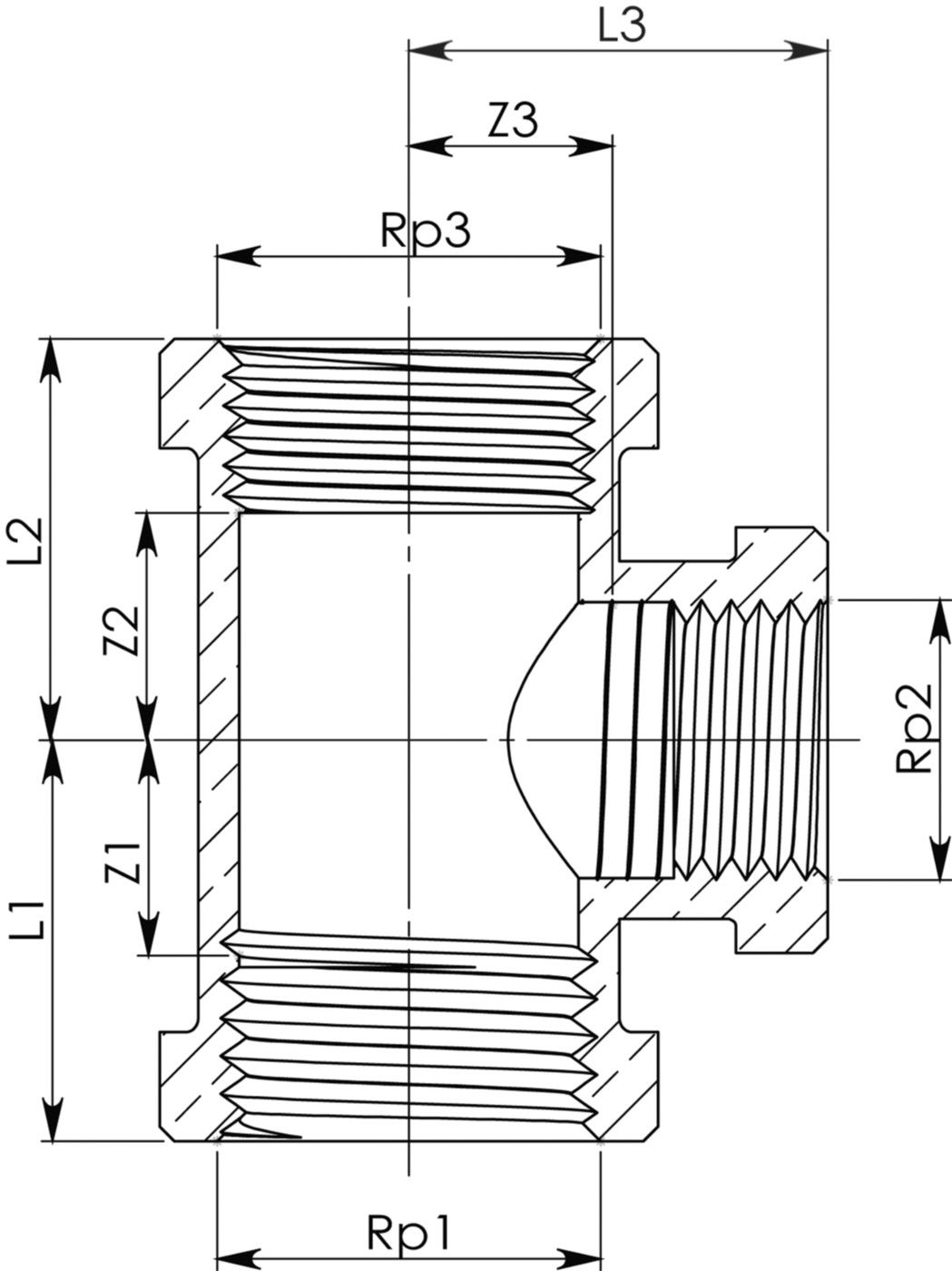

Flags
Z3 [mm]
IG (Rp2) [Zoll]
Z2 [mm]
IG (Rp1) [Zoll]
Z1 [mm]
L2 [mm]
L3 [mm]
IG (Rp3) [Zoll]
L1 [mm]
Gefunden: 18
Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 16
IG (Rp2) [Zoll]: 3/8
Z2 [mm]: 14
IG (Rp1) [Zoll]: 1/2
Z1 [mm]: 14
L2 [mm]: 24
L3 [mm]: 26
IG (Rp3) [Zoll]: 1/2
L1 [mm]: 24
Rotguss T-Stück reduziert 1/2-3/8-1/2" - mit IG

Artikel-Nr: R130.323
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 17
IG (Rp2) [Zoll]: 3/4
Z2 [mm]: 16
IG (Rp1) [Zoll]: 1/2
Z1 [mm]: 16
L2 [mm]: 28
L3 [mm]: 27
IG (Rp3) [Zoll]: 1/2
L1 [mm]: 28
Rotguss T-Stück reduziert 1/2-3/4-1/2" - mit IG

Artikel-Nr: R130.343
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 16
IG (Rp2) [Zoll]: 1/2
Z2 [mm]: 14
IG (Rp1) [Zoll]: 3/4
Z1 [mm]: 16
L2 [mm]: 26
L3 [mm]: 28
IG (Rp3) [Zoll]: 1/2
L1 [mm]: 27
Rotguss-T-Stück reduziert 3/4-1/2-1/2" - mit IG

Artikel-Nr: R130.433
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 17
IG (Rp2) [Zoll]: 1/2
Z2 [mm]: 16
IG (Rp1) [Zoll]: 3/4
Z1 [mm]: 16
L2 [mm]: 28
L3 [mm]: 29
IG (Rp3) [Zoll]: 3/4
L1 [mm]: 28
Rotguss T-Stück reduziert 3/4-1/2-3/4" - mit IG

Artikel-Nr: R130.434
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 17
IG (Rp2) [Zoll]: 3/4
Z2 [mm]: 18
IG (Rp1) [Zoll]: 3/4
Z1 [mm]: 16
L2 [mm]: 30
L3 [mm]: 30
IG (Rp3) [Zoll]: 1/2
L1 [mm]: 28
Rotguss T-Stück reduziert 3/4-3/4-1/2" - mit IG

Artikel-Nr: R130.443
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 20
IG (Rp2) [Zoll]: 1/2
Z2 [mm]: 17
IG (Rp1) [Zoll]: 1
Z1 [mm]: 17
L2 [mm]: 31
L3 [mm]: 32
IG (Rp3) [Zoll]: 1
L1 [mm]: 31
Rotguss T-Stück reduziert 1 -1/2- 1" - mit IG

Artikel-Nr: R130.535
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 21
IG (Rp2) [Zoll]: 3/4
Z2 [mm]: 20
IG (Rp1) [Zoll]: 1
Z1 [mm]: 20
L2 [mm]: 32
L3 [mm]: 33
IG (Rp3) [Zoll]: 1
L1 [mm]: 32
Rotguss T-Stück reduziert 1 -3/4- 1" - mit IG

Artikel-Nr: R130.545
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 27
IG (Rp2) [Zoll]: 1
Z2 [mm]: 22
IG (Rp1) [Zoll]: 1
Z1 [mm]: 28
L2 [mm]: 31
L3 [mm]: 36
IG (Rp3) [Zoll]: 1/2
L1 [mm]: 36
Rotguss T-Stück reduziert 1 - 1 -1/2" - mit IG

Artikel-Nr: R130.553
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 21
IG (Rp2) [Zoll]: 1/2
Z2 [mm]: 16
IG (Rp1) [Zoll]: 1 1/4
Z1 [mm]: 16
L2 [mm]: 32
L3 [mm]: 36
IG (Rp3) [Zoll]: 1 1/4
L1 [mm]: 32
Rotguss T-Stück reduziert 5/4-1/2-5/4" - mit IG

Artikel-Nr: R130.636
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 22
IG (Rp2) [Zoll]: 3/4
Z2 [mm]: 20
IG (Rp1) [Zoll]: 1 1/4
Z1 [mm]: 20
L2 [mm]: 35
L3 [mm]: 38
IG (Rp3) [Zoll]: 1 1/4
L1 [mm]: 35
Rotguss T-Stück reduziert 5/4-3/4-5/4" - mit IG

Artikel-Nr: R130.646
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 26
IG (Rp2) [Zoll]: 1
Z2 [mm]: 25
IG (Rp1) [Zoll]: 1 1/4
Z1 [mm]: 25
L2 [mm]: 40
L3 [mm]: 41
IG (Rp3) [Zoll]: 1 1/4
L1 [mm]: 40
Rotguss T-Stück reduziert 5/4- 1 -5/4" - mit IG

Artikel-Nr: R130.656
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 24
IG (Rp2) [Zoll]: 1/2
Z2 [mm]: 17
IG (Rp1) [Zoll]: 1 1/2
Z1 [mm]: 17
L2 [mm]: 33
L3 [mm]: 38
IG (Rp3) [Zoll]: 1 1/2
L1 [mm]: 33
Rotguss T-Stück reduziert 11/2-1/2-11/2" - mit IG

Artikel-Nr: R130.737
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 26
IG (Rp2) [Zoll]: 3/4
Z2 [mm]: 20
IG (Rp1) [Zoll]: 1 1/2
Z1 [mm]: 20
L2 [mm]: 36
L3 [mm]: 40
IG (Rp3) [Zoll]: 1 1/2
L1 [mm]: 36
Rotguss T-Stück reduziert 11/2-3/4-11/2" - mit IG

Artikel-Nr: R130.747
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 32
IG (Rp2) [Zoll]: 1
Z2 [mm]: 25
IG (Rp1) [Zoll]: 1 1/2
Z1 [mm]: 25
L2 [mm]: 41
L3 [mm]: 46
IG (Rp3) [Zoll]: 1 1/2
L1 [mm]: 41
Rotguss T-Stück reduziert 11/2- 1 -11/2" - mit IG

Artikel-Nr: R130.757
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 33
IG (Rp2) [Zoll]: 1 1/4
Z2 [mm]: 28
IG (Rp1) [Zoll]: 1 1/2
Z1 [mm]: 28
L2 [mm]: 42
L3 [mm]: 48
IG (Rp3) [Zoll]: 1 1/2
L1 [mm]: 42
Rotguss T-Stück reduziert 11/2-5/4-11/2" - mit IG

Artikel-Nr: R130.767
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 36
IG (Rp2) [Zoll]: 1
Z2 [mm]: 30
IG (Rp1) [Zoll]: 2
Z1 [mm]: 30
L2 [mm]: 46
L3 [mm]: 50
IG (Rp3) [Zoll]: 2
L1 [mm]: 46
Rotguss T-Stück reduziert 2 - 1 - 2" - mit IG

Artikel-Nr: R130.858
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 33
IG (Rp2) [Zoll]: 1 1/4
Z2 [mm]: 30
IG (Rp1) [Zoll]: 2
Z1 [mm]: 30
L2 [mm]: 46
L3 [mm]: 50
IG (Rp3) [Zoll]: 2
L1 [mm]: 46
Rotguss T-Stück reduziert 2 -5/4- 2" - mit IG

Artikel-Nr: R130.868
...

Material: Rotguss
IG (Rp) [Zoll]: ---
Z [mm]: ---
L [mm]: ---
Z3 [mm]: 34
IG (Rp2) [Zoll]: 1 1/2
Z2 [mm]: 32
IG (Rp1) [Zoll]: 2
Z1 [mm]: 32
L2 [mm]: 47
L3 [mm]: 50
IG (Rp3) [Zoll]: 2
L1 [mm]: 47
Rotguss T-Stück reduziert 2 -11/2- 2" - mit IG

Artikel-Nr: R130.878
...


Beschreibung

- Material: Rotguss CC499K
- Gewindeart: IG-Rp / ISO 7-1
- SVGW Wasser 1/2" - 4"
- SVGW Gas 1/4" - 2"
- DVGW 3/8" - 2"
