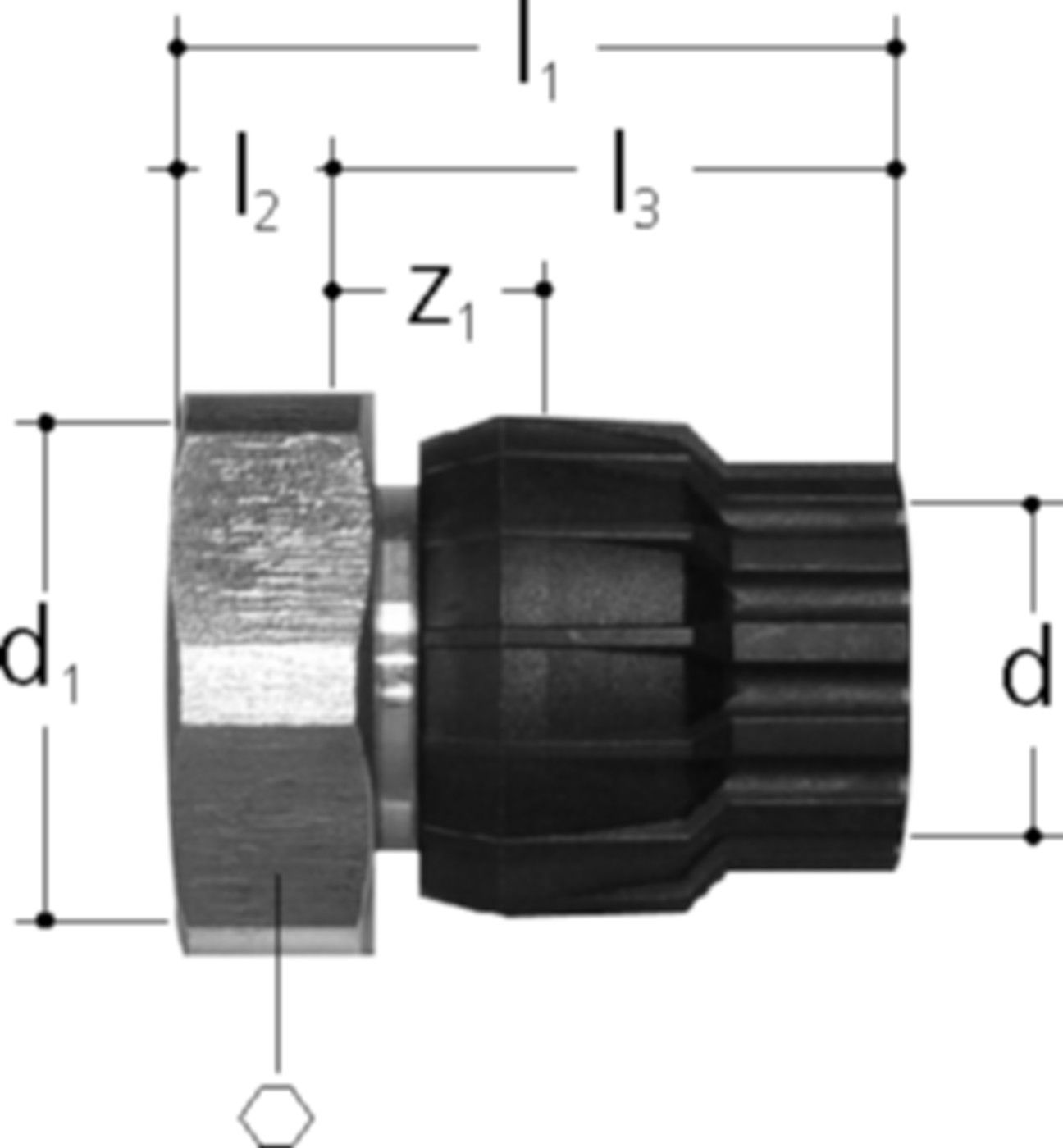

Sanipex MT-Uebergang Armaturen

Alle Varianten
Artikel-Nr:JRG4700
13 von 13
Flags
l2 [mm]
6-kant [mm]
Ø d [mm]
l1 [mm]
NPK-Nr.
JRG-Nr.
z1 [mm]
d1 G [Zoll]
l3 [mm]
Gefunden: 13
d1 Rp [Zoll]: ---
l2 [mm]: 8.0
6-kant [mm]: 32
Ø d [mm]: 16
z2 [mm]: ---
l1 [mm]: 41.5
Winkel [°]: ---
NPK-Nr.: 333.121
JRG-Nr.: 4700.102
z1 [mm]: 15.0
Ø d1 [mm]: ---
d2 Rp [Zoll]: ---
d1 R [Zoll]: ---
Ø d2 [mm]: ---
GN [Zoll]: ---
d1 G [Zoll]: 3/4
l3 [mm]: 33.5
l [mm]: -
z [mm]: ---
d [Zoll]: ---
d2 G [Zoll]: ---
Sanipex MT-Uebergang Armaturen 16-3/4

Artikel-Nr: 4700.102
...

d1 Rp [Zoll]: ---
l2 [mm]: 8.0
6-kant [mm]: 32
Ø d [mm]: 20
z2 [mm]: ---
l1 [mm]: 46.5
Winkel [°]: ---
NPK-Nr.: 333.122
JRG-Nr.: 4700.104
z1 [mm]: 16.0
Ø d1 [mm]: ---
d2 Rp [Zoll]: ---
d1 R [Zoll]: ---
Ø d2 [mm]: ---
GN [Zoll]: ---
d1 G [Zoll]: 3/4
l3 [mm]: 38.5
l [mm]: -
z [mm]: ---
d [Zoll]: ---
d2 G [Zoll]: ---
Sanipex MT-Uebergang Armaturen 20-3/4

Artikel-Nr: 4700.104
...

d1 Rp [Zoll]: ---
l2 [mm]: 8.5
6-kant [mm]: 37
Ø d [mm]: 16
z2 [mm]: ---
l1 [mm]: 44.5
Winkel [°]: ---
NPK-Nr.: 333.131
JRG-Nr.: 4700.108
z1 [mm]: 23.0
Ø d1 [mm]: ---
d2 Rp [Zoll]: ---
d1 R [Zoll]: ---
Ø d2 [mm]: ---
GN [Zoll]: ---
d1 G [Zoll]: 1
l3 [mm]: 36.0
l [mm]: -
z [mm]: ---
d [Zoll]: ---
d2 G [Zoll]: ---
Sanipex MT Armaturenüberg. d16x1"

Artikel-Nr: 4700.108
...

d1 Rp [Zoll]: ---
l2 [mm]: 8.5
6-kant [mm]: 37
Ø d [mm]: 20
z2 [mm]: ---
l1 [mm]: 51.0
Winkel [°]: ---
NPK-Nr.: 333.132
JRG-Nr.: 4700.110
z1 [mm]: 21.0
Ø d1 [mm]: ---
d2 Rp [Zoll]: ---
d1 R [Zoll]: ---
Ø d2 [mm]: ---
GN [Zoll]: ---
d1 G [Zoll]: 1
l3 [mm]: 42.5
l [mm]: -
z [mm]: ---
d [Zoll]: ---
d2 G [Zoll]: ---
Sanipex MT Armaturenüberg. d20x1"

Artikel-Nr: 4700.110
...

d1 Rp [Zoll]: ---
l2 [mm]: 8.5
6-kant [mm]: 37
Ø d [mm]: 26
z2 [mm]: ---
l1 [mm]: 56.5
Winkel [°]: ---
NPK-Nr.: 333.133
JRG-Nr.: 4700.112
z1 [mm]: 19.0
Ø d1 [mm]: ---
d2 Rp [Zoll]: ---
d1 R [Zoll]: ---
Ø d2 [mm]: ---
GN [Zoll]: ---
d1 G [Zoll]: 1
l3 [mm]: 48.0
l [mm]: -
z [mm]: ---
d [Zoll]: ---
d2 G [Zoll]: ---
Sanipex MT-Uebergang Armaturen 26-1

Artikel-Nr: 4700.112
...

d1 Rp [Zoll]: ---
l2 [mm]: 11.0
6-kant [mm]: 46
Ø d [mm]: 16
z2 [mm]: ---
l1 [mm]: 44.5
Winkel [°]: ---
NPK-Nr.: 333.151
JRG-Nr.: 4700.120
z1 [mm]: 15.0
Ø d1 [mm]: ---
d2 Rp [Zoll]: ---
d1 R [Zoll]: ---
Ø d2 [mm]: ---
GN [Zoll]: ---
d1 G [Zoll]: 1 1/4
l3 [mm]: 33.5
l [mm]: -
z [mm]: ---
d [Zoll]: ---
d2 G [Zoll]: ---
Sanipex MT-Uebergang Armaturen 16-5/4

Artikel-Nr: 4700.120
...

d1 Rp [Zoll]: ---
l2 [mm]: 11.0
6-kant [mm]: 46
Ø d [mm]: 20
z2 [mm]: ---
l1 [mm]: 49.5
Winkel [°]: ---
NPK-Nr.: 333.152
JRG-Nr.: 4700.122
z1 [mm]: 16.0
Ø d1 [mm]: ---
d2 Rp [Zoll]: ---
d1 R [Zoll]: ---
Ø d2 [mm]: ---
GN [Zoll]: ---
d1 G [Zoll]: 1 1/4
l3 [mm]: 38.5
l [mm]: -
z [mm]: ---
d [Zoll]: ---
d2 G [Zoll]: ---
Sanipex MT-Uebergang Armaturen 20-5/4

Artikel-Nr: 4700.122
...

d1 Rp [Zoll]: ---
l2 [mm]: 11.0
6-kant [mm]: 46
Ø d [mm]: 26
z2 [mm]: ---
l1 [mm]: 59.0
Winkel [°]: ---
NPK-Nr.: 333.153
JRG-Nr.: 4700.124
z1 [mm]: 19.0
Ø d1 [mm]: ---
d2 Rp [Zoll]: ---
d1 R [Zoll]: ---
Ø d2 [mm]: ---
GN [Zoll]: ---
d1 G [Zoll]: 1 1/4
l3 [mm]: 48.0
l [mm]: -
z [mm]: ---
d [Zoll]: ---
d2 G [Zoll]: ---
Sanipex MT-Uebergang Armaturen 26-5/4

Artikel-Nr: 4700.124
...

d1 Rp [Zoll]: ---
l2 [mm]: 11.0
6-kant [mm]: 46
Ø d [mm]: 32
z2 [mm]: ---
l1 [mm]: 69.0
Winkel [°]: ---
NPK-Nr.: 333.154
JRG-Nr.: 4700.126
z1 [mm]: 20.0
Ø d1 [mm]: ---
d2 Rp [Zoll]: ---
d1 R [Zoll]: ---
Ø d2 [mm]: ---
GN [Zoll]: ---
d1 G [Zoll]: 1 1/4
l3 [mm]: 58.0
l [mm]: -
z [mm]: ---
d [Zoll]: ---
d2 G [Zoll]: ---
Sanipex MT-Uebergang Armat. 32-5/4

Artikel-Nr: 4700.126
...

d1 Rp [Zoll]: ---
l2 [mm]: 11.0
6-kant [mm]: 54
Ø d [mm]: 26
z2 [mm]: ---
l1 [mm]: 59.0
Winkel [°]: ---
NPK-Nr.: 333.163
JRG-Nr.: 4700.128
z1 [mm]: 19.0
Ø d1 [mm]: ---
d2 Rp [Zoll]: ---
d1 R [Zoll]: ---
Ø d2 [mm]: ---
GN [Zoll]: ---
d1 G [Zoll]: 1 1/2
l3 [mm]: 48.0
l [mm]: -
z [mm]: ---
d [Zoll]: ---
d2 G [Zoll]: ---
Sanipex MT-Uebergang Armat. 26-11/2

Artikel-Nr: 4700.128
...

d1 Rp [Zoll]: ---
l2 [mm]: 11.0
6-kant [mm]: 54
Ø d [mm]: 32
z2 [mm]: ---
l1 [mm]: 69.0
Winkel [°]: ---
NPK-Nr.: 333.164
JRG-Nr.: 4700.130
z1 [mm]: 20.0
Ø d1 [mm]: ---
d2 Rp [Zoll]: ---
d1 R [Zoll]: ---
Ø d2 [mm]: ---
GN [Zoll]: ---
d1 G [Zoll]: 1 1/2
l3 [mm]: 58.0
l [mm]: -
z [mm]: ---
d [Zoll]: ---
d2 G [Zoll]: ---
Sanipex MT-Uebergang Armat. 32-11/2

Artikel-Nr: 4700.130
...

d1 Rp [Zoll]: ---
l2 [mm]: 11.0
6-kant [mm]: 55
Ø d [mm]: 40
z2 [mm]: ---
l1 [mm]: 80.0
Winkel [°]: ---
NPK-Nr.: 333.165
JRG-Nr.: 4700.132
z1 [mm]: 24.0
Ø d1 [mm]: ---
d2 Rp [Zoll]: ---
d1 R [Zoll]: ---
Ø d2 [mm]: ---
GN [Zoll]: ---
d1 G [Zoll]: 1 1/2
l3 [mm]: 69.0
l [mm]: -
z [mm]: ---
d [Zoll]: ---
d2 G [Zoll]: ---
Sanipex MT-Uebergang Armat. 40-11/2

Artikel-Nr: 4700.132
...

d1 Rp [Zoll]: ---
l2 [mm]: 13.0
6-kant [mm]: 67
Ø d [mm]: 40
z2 [mm]: ---
l1 [mm]: 82.5
Winkel [°]: ---
NPK-Nr.: 333.175
JRG-Nr.: 4700.136
z1 [mm]: 25.0
Ø d1 [mm]: ---
d2 Rp [Zoll]: ---
d1 R [Zoll]: ---
Ø d2 [mm]: ---
GN [Zoll]: ---
d1 G [Zoll]: 2
l3 [mm]: 69.5
l [mm]: -
z [mm]: ---
d [Zoll]: ---
d2 G [Zoll]: ---
Sanipex MT-Uebergang Armat. 40- 2

Artikel-Nr: 4700.136
...


Beschreibung

- Aus Rotguss, mit Innengewinde und Dichtung*
- Bördel-Verschraubung MT aus Kunststoff
- Für JRG Sanipex d16/d20 und JRG Sanipex MT-Rohre
