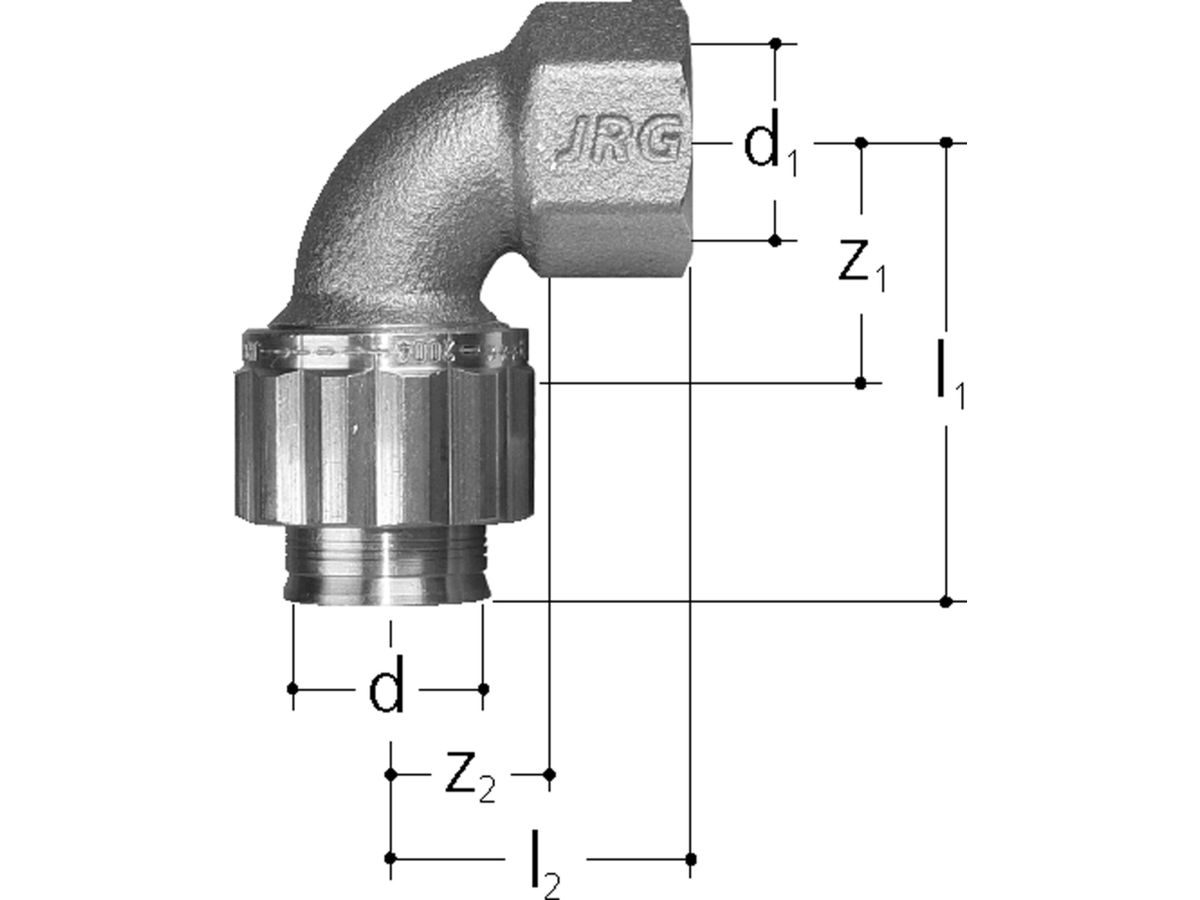

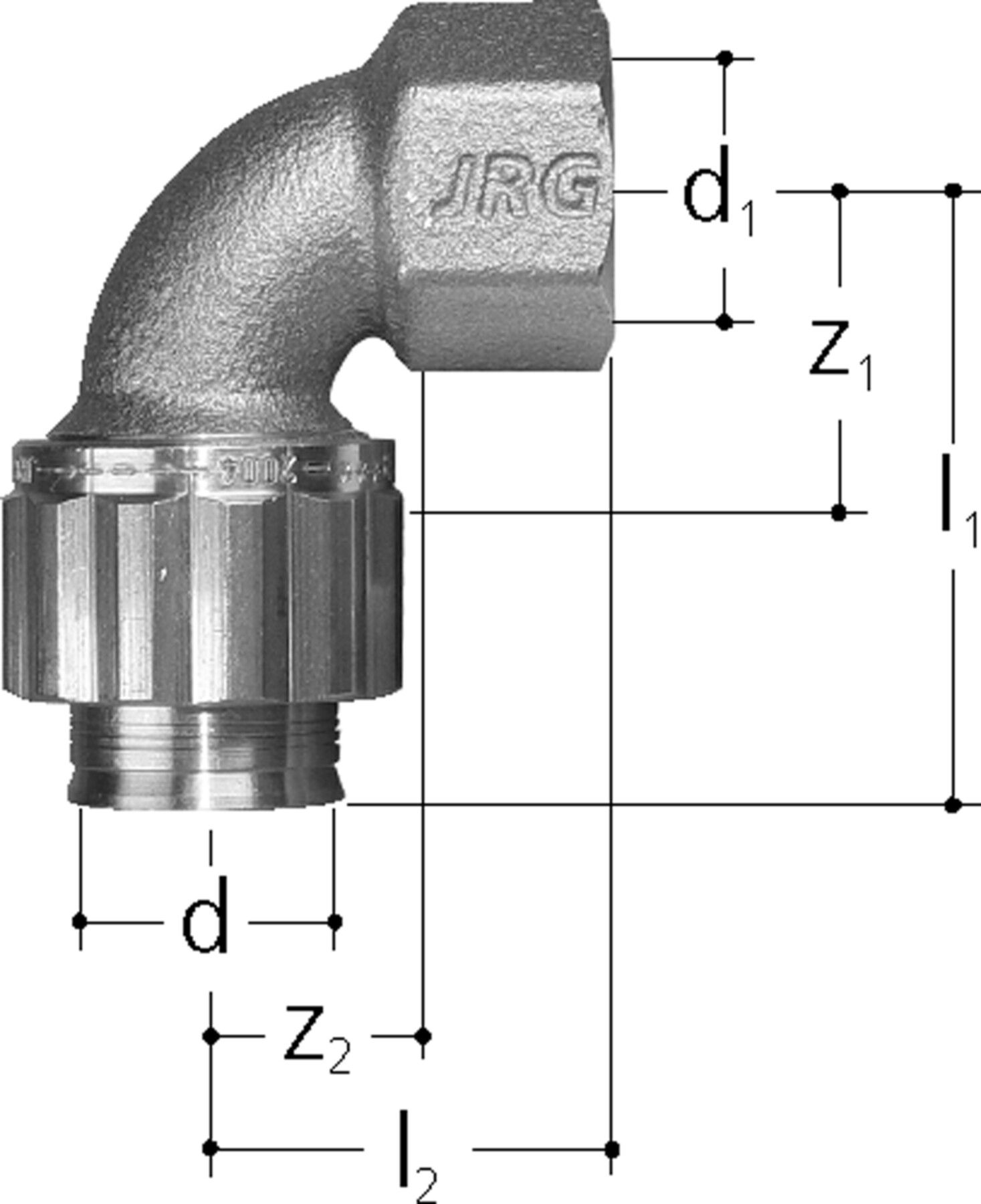

Sanipex Bogen 90° mit Innengewinde

Alle Varianten
Artikel-Nr:JRG5521
Sanipex
5 von 5
l2 [mm]
z1 [mm]
Ø d [mm]
l1 [mm]
NPK-Nr.
JRG-Nr.
d1 Rp [Zoll]
z2 [mm]
Gefunden: 5
l2 [mm]: 33
z1 [mm]: 30
Ø d [mm]: 12
l1 [mm]: 37
NPK-Nr.: 331.131
JRG-Nr.: 5521.900
d2 Rp [Zoll]: ---
d1 [mm]: ---
d1 Rp [Zoll]: 1/2
z2 [mm]: 17
Winkel [°]: 90
d1 R [Zoll]: ---
d2 G [Zoll]: ---
6-kant [mm]: ---
GN [Zoll]: ---
d2 [mm]: ---
l [mm]: ---
Ø d1 [mm]: ---
l3 [mm]: ---
d3 Rp [Zoll]: ---
DN: ---
d1 G [Zoll]: ---
zDichtung: ---
DN-d [mm]: ---
Sanipex Bogen mit IG 12-1/2"

Artikel-Nr: 5521.900
...

l2 [mm]: 33
z1 [mm]: 24
Ø d [mm]: 16
l1 [mm]: 44
NPK-Nr.: 331.131
JRG-Nr.: 5521.908
d2 Rp [Zoll]: ---
d1 [mm]: ---
d1 Rp [Zoll]: 1/2
z2 [mm]: 17
Winkel [°]: 90
d1 R [Zoll]: ---
d2 G [Zoll]: ---
6-kant [mm]: ---
GN [Zoll]: ---
d2 [mm]: ---
l [mm]: ---
Ø d1 [mm]: ---
l3 [mm]: ---
d3 Rp [Zoll]: ---
DN: ---
d1 G [Zoll]: ---
zDichtung: ---
DN-d [mm]: ---
Sanipex Bogen mit IG 16-1/2"

Artikel-Nr: 5521.908
...

l2 [mm]: 36
z1 [mm]: 45
Ø d [mm]: 25
l1 [mm]: 74
NPK-Nr.: 331.143
JRG-Nr.: 5521.919
d2 Rp [Zoll]: ---
d1 [mm]: ---
d1 Rp [Zoll]: 3/4
z2 [mm]: 21
Winkel [°]: 90
d1 R [Zoll]: ---
d2 G [Zoll]: ---
6-kant [mm]: 22
GN [Zoll]: ---
d2 [mm]: ---
l [mm]: ---
Ø d1 [mm]: ---
l3 [mm]: ---
d3 Rp [Zoll]: ---
DN: ---
d1 G [Zoll]: ---
zDichtung: ---
DN-d [mm]: ---
Sanipex Bogen mit IG 25-3/4"

Artikel-Nr: 5521.919
...

l2 [mm]: 33
z1 [mm]: 27
Ø d [mm]: 20
l1 [mm]: 55
NPK-Nr.: 331.132
JRG-Nr.: 5521.921
d2 Rp [Zoll]: ---
d1 [mm]: ---
d1 Rp [Zoll]: 1/2
z2 [mm]: 17
Winkel [°]: 90
d1 R [Zoll]: ---
d2 G [Zoll]: ---
6-kant [mm]: ---
GN [Zoll]: ---
d2 [mm]: ---
l [mm]: ---
Ø d1 [mm]: ---
l3 [mm]: ---
d3 Rp [Zoll]: ---
DN: ---
d1 G [Zoll]: ---
zDichtung: ---
DN-d [mm]: ---
Sanipex Bogen mit IG 20-1/2"

Artikel-Nr: 5521.921
...

l2 [mm]: 36
z1 [mm]: 27
Ø d [mm]: 20
l1 [mm]: 55
NPK-Nr.: 331.142
JRG-Nr.: 5521.922
d2 Rp [Zoll]: ---
d1 [mm]: ---
d1 Rp [Zoll]: 3/4
z2 [mm]: 21
Winkel [°]: 90
d1 R [Zoll]: ---
d2 G [Zoll]: ---
6-kant [mm]: ---
GN [Zoll]: ---
d2 [mm]: ---
l [mm]: ---
Ø d1 [mm]: ---
l3 [mm]: ---
d3 Rp [Zoll]: ---
DN: ---
d1 G [Zoll]: ---
zDichtung: ---
DN-d [mm]: ---
Sanipex Bogen mit IG 20-3/4"

Artikel-Nr: 5521.922
...


Beschreibung

- Aus Rotguss, mit Innengewinde und Bördel-Verschraubung
