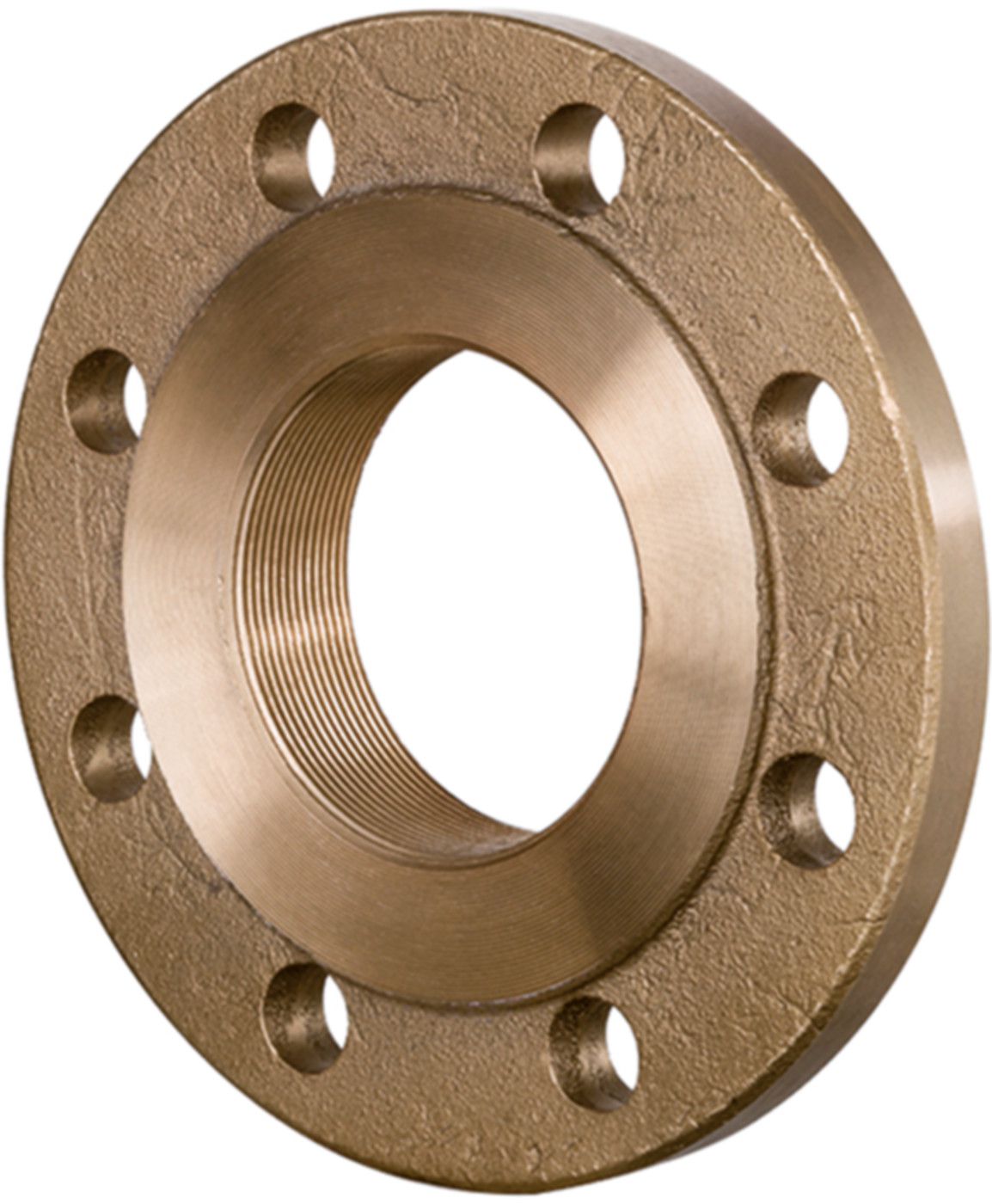

Gewindeflansch Rotguss PN 16

Alle Varianten
Artikel-Nr:4.0629
Raric
9 von 9

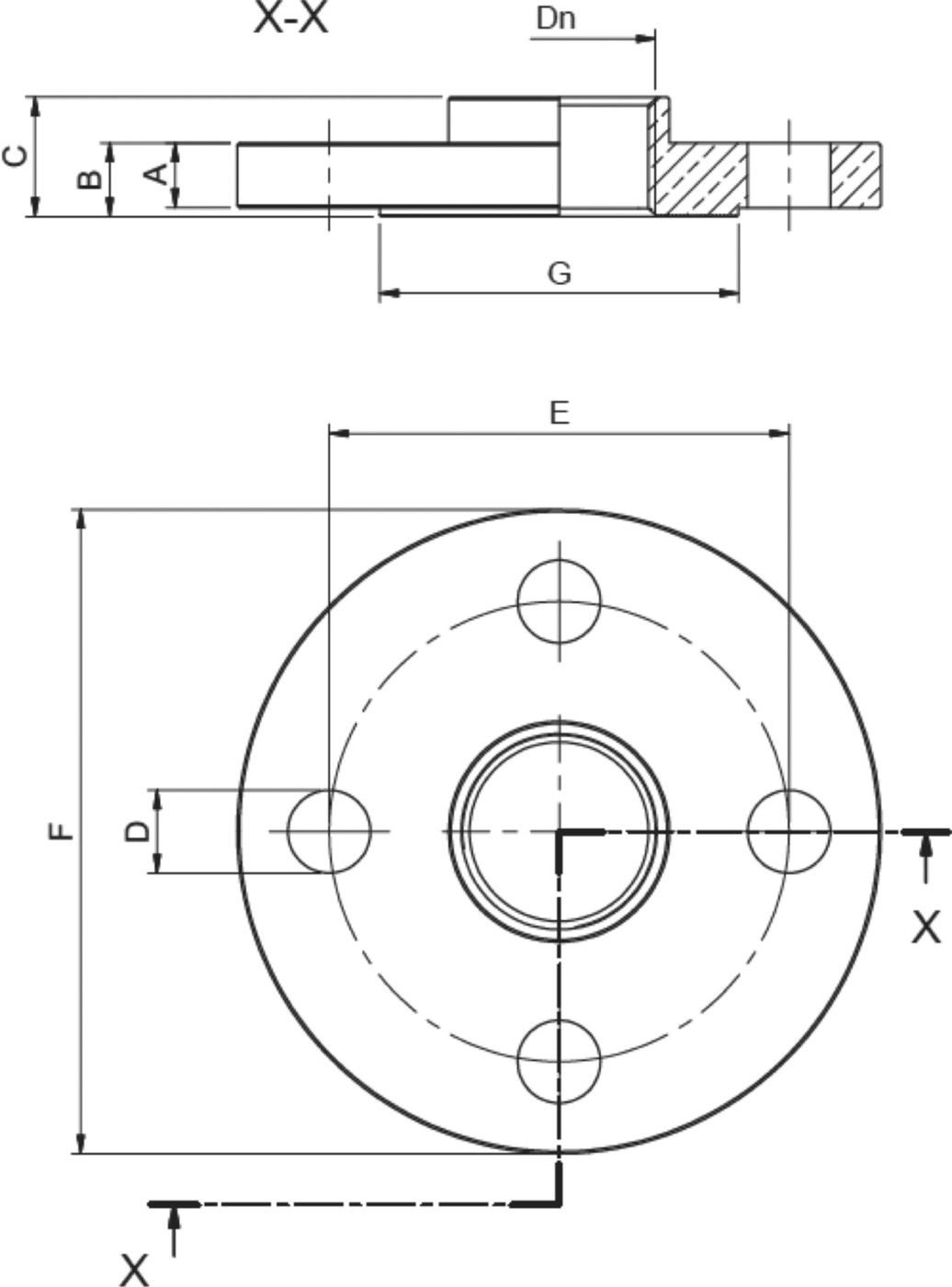

B [mm]
A [mm]
C [mm]
D [mm]
E [mm]
F [mm]
G [mm]
Zoll [Zoll]
DN
SL [mm]
Gefunden: 9
Material: Rotguss
L [mm]: ---
S1 [mm]: ---
Z [mm]: ---
S2 [mm]: ---
IG (Rp) [Zoll]: ---
S3 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: 14
A [mm]: 12
C [mm]: 20
D [mm]: 14
E [mm]: 65
A [Zoll]: ---
F [mm]: 95
G [mm]: 45
Zoll [Zoll]: 1/2
DN: 15
SL [mm]: 4
IG (G) [Zoll]: ---
S [mm]: ---
L1 [mm]: ---
G [Zoll]: ---
IG [Zoll]: ---
Rotguss Gewindeflansch 629 1/2" - PN 16 4-Loch, K65 DN 15

Artikel-Nr: R629.3
...

Material: Rotguss
L [mm]: ---
S1 [mm]: ---
Z [mm]: ---
S2 [mm]: ---
IG (Rp) [Zoll]: ---
S3 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: 16
A [mm]: 14
C [mm]: 24
D [mm]: 14
E [mm]: 75
A [Zoll]: ---
F [mm]: 105
G [mm]: 58
Zoll [Zoll]: 3/4
DN: 20
SL [mm]: 4
IG (G) [Zoll]: ---
S [mm]: ---
L1 [mm]: ---
G [Zoll]: ---
IG [Zoll]: ---
Rotguss Gewindeflansch 629 3/4" - PN 16 4-Loch, K75 DN 20

Artikel-Nr: R629.4
...

Material: Rotguss
L [mm]: ---
S1 [mm]: ---
Z [mm]: ---
S2 [mm]: ---
IG (Rp) [Zoll]: ---
S3 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: 16
A [mm]: 14
C [mm]: 24
D [mm]: 14
E [mm]: 85
A [Zoll]: ---
F [mm]: 115
G [mm]: 68
Zoll [Zoll]: 1
DN: 25
SL [mm]: 4
IG (G) [Zoll]: ---
S [mm]: ---
L1 [mm]: ---
G [Zoll]: ---
IG [Zoll]: ---
Rotguss Gewindeflansch 629 1" - PN 16 4-Loch, K85 DN 25

Artikel-Nr: R629.5
...

Material: Rotguss
L [mm]: ---
S1 [mm]: ---
Z [mm]: ---
S2 [mm]: ---
IG (Rp) [Zoll]: ---
S3 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: 16
A [mm]: 14
C [mm]: 26
D [mm]: 18
E [mm]: 100
A [Zoll]: ---
F [mm]: 140
G [mm]: 78
Zoll [Zoll]: 1 1/4
DN: 32
SL [mm]: 4
IG (G) [Zoll]: ---
S [mm]: ---
L1 [mm]: ---
G [Zoll]: ---
IG [Zoll]: ---
Rotguss Gewindeflansch 629 11/4" - PN 16 4-Loch, K100 DN 32

Artikel-Nr: R629.6
...

Material: Rotguss
L [mm]: ---
S1 [mm]: ---
Z [mm]: ---
S2 [mm]: ---
IG (Rp) [Zoll]: ---
S3 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: 16
A [mm]: 14
C [mm]: 26
D [mm]: 18
E [mm]: 110
A [Zoll]: ---
F [mm]: 150
G [mm]: 88
Zoll [Zoll]: 1 1/2
DN: 40
SL [mm]: 4
IG (G) [Zoll]: ---
S [mm]: ---
L1 [mm]: ---
G [Zoll]: ---
IG [Zoll]: ---
Rotguss Gewindeflansch 629 11/2" - PN 16 4-Loch, K110 DN 40

Artikel-Nr: R629.7
...

Material: Rotguss
L [mm]: ---
S1 [mm]: ---
Z [mm]: ---
S2 [mm]: ---
IG (Rp) [Zoll]: ---
S3 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: 18
A [mm]: 15
C [mm]: 28
D [mm]: 18
E [mm]: 125
A [Zoll]: ---
F [mm]: 165
G [mm]: 102
Zoll [Zoll]: 2
DN: 50
SL [mm]: 4
IG (G) [Zoll]: ---
S [mm]: ---
L1 [mm]: ---
G [Zoll]: ---
IG [Zoll]: ---
Rotguss Gewindeflansch 629 2" - PN 16 4-Loch, K125 DN 50

Artikel-Nr: R629.8
...

Material: Rotguss
L [mm]: ---
S1 [mm]: ---
Z [mm]: ---
S2 [mm]: ---
IG (Rp) [Zoll]: ---
S3 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: 18
A [mm]: 15
C [mm]: 32
D [mm]: 18
E [mm]: 145
A [Zoll]: ---
F [mm]: 185
G [mm]: 122
Zoll [Zoll]: 2 1/2
DN: 65
SL [mm]: 4
IG (G) [Zoll]: ---
S [mm]: ---
L1 [mm]: ---
G [Zoll]: ---
IG [Zoll]: ---
Rotguss Gewindeflansch 629 21/2" - PN 16 4-Loch, K145 DN 65

Artikel-Nr: R629.9
...

Material: Rotguss
L [mm]: ---
S1 [mm]: ---
Z [mm]: ---
S2 [mm]: ---
IG (Rp) [Zoll]: ---
S3 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: 20
A [mm]: 17
C [mm]: 34
D [mm]: 18
E [mm]: 160
A [Zoll]: ---
F [mm]: 200
G [mm]: 138
Zoll [Zoll]: 3
DN: 80
SL [mm]: 8
IG (G) [Zoll]: ---
S [mm]: ---
L1 [mm]: ---
G [Zoll]: ---
IG [Zoll]: ---
Rotguss Gewindeflansch 629 3" - PN 16 8-Loch, K160 DN 80

Artikel-Nr: R629.A
...

Material: ---
L [mm]: ---
S1 [mm]: ---
Z [mm]: ---
S2 [mm]: ---
IG (Rp) [Zoll]: ---
S3 [mm]: ---
AG (R) [Zoll]: ---
B [mm]: 20
A [mm]: 17
C [mm]: 38
D [mm]: 18
E [mm]: 180
A [Zoll]: ---
F [mm]: 220
G [mm]: 158
Zoll [Zoll]: 4
DN: 100
SL [mm]: 8
IG (G) [Zoll]: ---
S [mm]: ---
L1 [mm]: ---
G [Zoll]: ---
IG [Zoll]: ---
Rotguss Gewindeflansch 629 4"

Artikel-Nr: R629.B
...


Beschreibung

- Material: Rotguss CC499K
- Betriebsdruck: PN 16
- Gewindeart: IG-Rp / ISO 7-1
