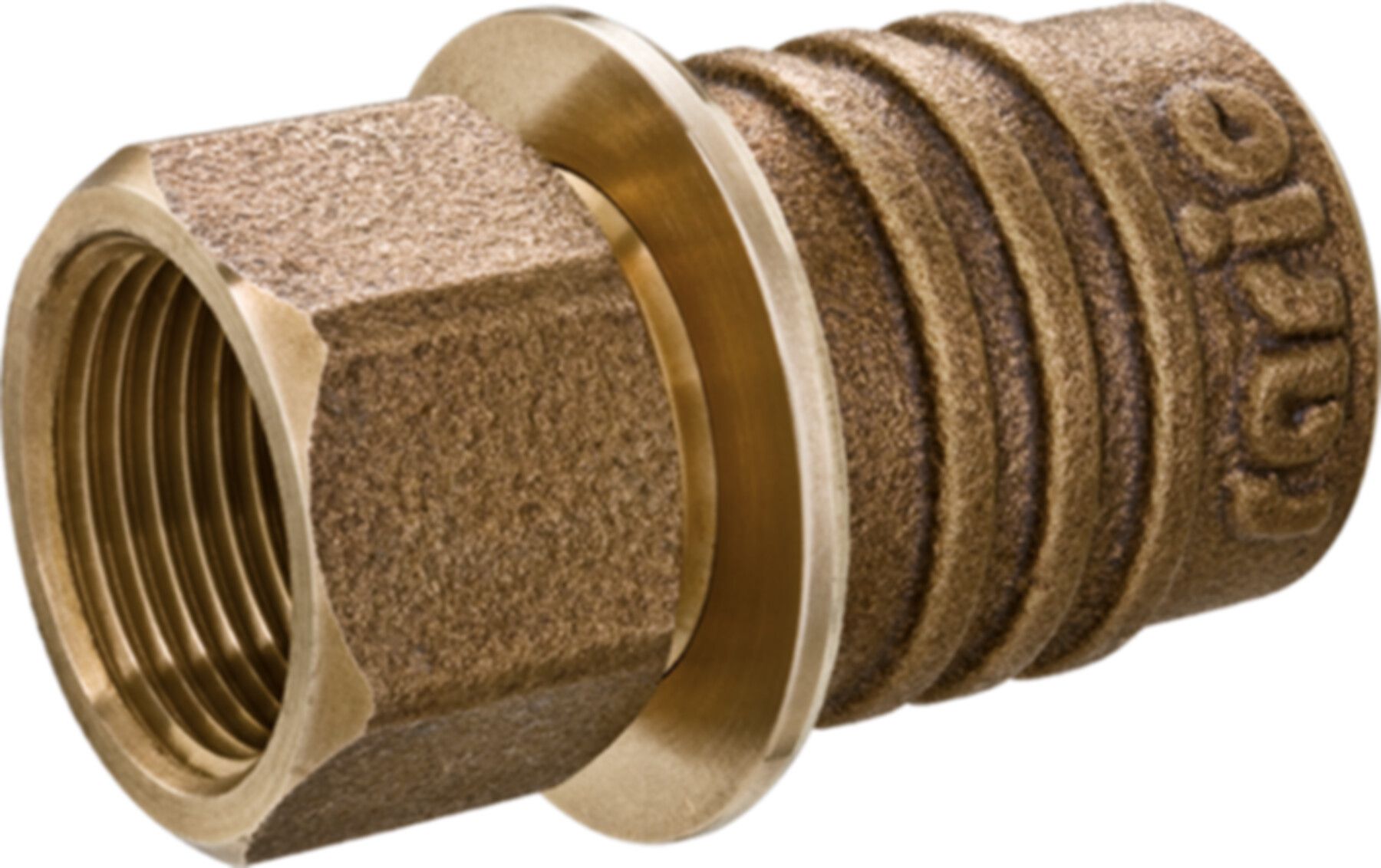

Brunnenventil Rotguss komplett
mit Innengewinde

Alle Varianten
Artikel-Nr:4.G164
Raric
7 von 7
Flags

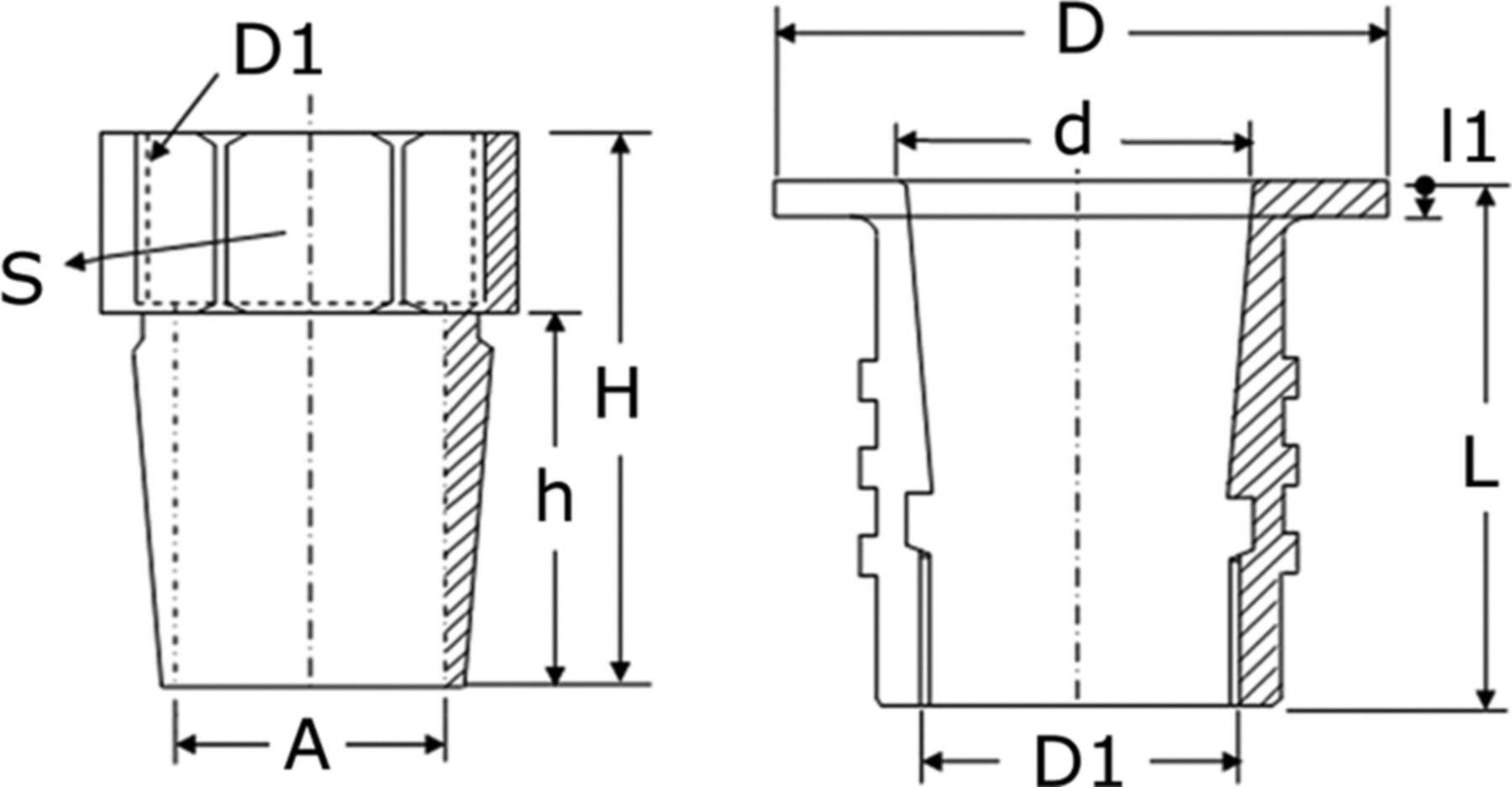

A [mm]
d [mm]
H [mm]
D [mm]
h [mm]
l1 [mm]
IG (Rp) [Zoll]
L [mm]
S [mm]
Gefunden: 7
Material: Rotguss
A [mm]: 19
d [mm]: 27
H [mm]: 39
D [mm]: 40
h [mm]: 19
l1 [mm]: 3
IG (Rp) [Zoll]: 3/4
L [mm]: 37
S [mm]: 32
L2 [mm]: ---
Z [mm]: ---
AG (G) [Zoll]: ---
L1 [mm]: ---
OD [mm]: ---
IG (G) [Zoll]: ---
ID1 [mm]: ---
Z1 [mm]: ---
ID [mm]: ---
SW [mm]: ---
Brunnenventil Rotguss IG 3/4"

Artikel-Nr: RG164.4
...

Material: Rotguss
A [mm]: 26
d [mm]: 33
H [mm]: 50
D [mm]: 52
h [mm]: 25
l1 [mm]: 4
IG (Rp) [Zoll]: 1
L [mm]: 49
S [mm]: 40
L2 [mm]: ---
Z [mm]: ---
AG (G) [Zoll]: ---
L1 [mm]: ---
OD [mm]: ---
IG (G) [Zoll]: ---
ID1 [mm]: ---
Z1 [mm]: ---
ID [mm]: ---
SW [mm]: ---
Brunnenventil Rotguss IG 1"

Artikel-Nr: RG164.5
...

Material: Rotguss
A [mm]: 31
d [mm]: 40
H [mm]: 55
D [mm]: 63
h [mm]: 29
l1 [mm]: 5
IG (Rp) [Zoll]: 1 1/4
L [mm]: 55
S [mm]: 50
L2 [mm]: ---
Z [mm]: ---
AG (G) [Zoll]: ---
L1 [mm]: ---
OD [mm]: ---
IG (G) [Zoll]: ---
ID1 [mm]: ---
Z1 [mm]: ---
ID [mm]: ---
SW [mm]: ---
Brunnenventil Rotguss IG 11/4"

Artikel-Nr: RG164.6
...

Material: Rotguss
A [mm]: 39
d [mm]: 50
H [mm]: 64
D [mm]: 74
h [mm]: 37
l1 [mm]: 5
IG (Rp) [Zoll]: 1 1/2
L [mm]: 60
S [mm]: 57
L2 [mm]: ---
Z [mm]: ---
AG (G) [Zoll]: ---
L1 [mm]: ---
OD [mm]: ---
IG (G) [Zoll]: ---
ID1 [mm]: ---
Z1 [mm]: ---
ID [mm]: ---
SW [mm]: ---
Brunnenventil Rotguss IG 11/2"

Artikel-Nr: RG164.7
...

Material: Rotguss
A [mm]: 50
d [mm]: 63
H [mm]: 71
D [mm]: 90
h [mm]: 45
l1 [mm]: 5
IG (Rp) [Zoll]: 2
L [mm]: 76
S [mm]: 70
L2 [mm]: ---
Z [mm]: ---
AG (G) [Zoll]: ---
L1 [mm]: ---
OD [mm]: ---
IG (G) [Zoll]: ---
ID1 [mm]: ---
Z1 [mm]: ---
ID [mm]: ---
SW [mm]: ---
Brunnenventil Rotguss IG 2"

Artikel-Nr: RG164.8
...

Material: Rotguss
A [mm]: 64
d [mm]: 78
H [mm]: 90
D [mm]: 110
h [mm]: 55
l1 [mm]: 6
IG (Rp) [Zoll]: 2 1/2
L [mm]: 90
S [mm]: 86
L2 [mm]: ---
Z [mm]: ---
AG (G) [Zoll]: ---
L1 [mm]: ---
OD [mm]: ---
IG (G) [Zoll]: ---
ID1 [mm]: ---
Z1 [mm]: ---
ID [mm]: ---
SW [mm]: ---
Brunnenventil Rotguss IG 21/2"

Artikel-Nr: RG164.9
...

Material: Rotguss
A [mm]: 76
d [mm]: 93
H [mm]: 101
D [mm]: 130
h [mm]: 64
l1 [mm]: 8
IG (Rp) [Zoll]: 3
L [mm]: 105
S [mm]: 101
L2 [mm]: ---
Z [mm]: ---
AG (G) [Zoll]: ---
L1 [mm]: ---
OD [mm]: ---
IG (G) [Zoll]: ---
ID1 [mm]: ---
Z1 [mm]: ---
ID [mm]: ---
SW [mm]: ---
Brunnenventil Rotguss IG 3"

Artikel-Nr: RG164.A
...


Beschreibung

- Oberteil mit IG für Überlaufrohr
- Unterteil mit IG und Rillen zum Einzementen
- Material: Rotguss CC499K
- Gewindeart: IG-Rp / ISO 7-1
